241.19. High performance compression spring, 3XLF, Colour White
Description:
The diameters are comparable with the high performance compression springs DIN ISO 10243. The special flat wound wire cross section brings a reduction of the medium winding diameter for the same winding
The diameters are comparable with the high performance compression springs DIN ISO 10243. The special flat wound wire cross section brings a reduction of the medium winding diameter for the same winding
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 27 items

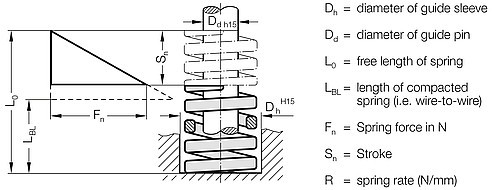

| SKU | Diameter of guide sleeve | Mandrel diameter | Free length of spring | stroke | |
|---|---|---|---|---|---|
| 241.19.16.020 | 16 mm | 6.3 mm | 20 mm | 2.3 | |
| 241.19.16.035 | 16 mm | 6.3 mm | 35 mm | 4.1 | |
| 241.19.16.050 | 16 mm | 6.3 mm | 50 mm | 6.6 | |
| 241.19.16.075 | 16 mm | 6.3 mm | 75 mm | 10.1 | |
| 241.19.16.100 | 16 mm | 6.3 mm | 100 mm | 14.1 | |
| 241.19.19.025 | 19 mm | 8 mm | 25 mm | 2.6 | |
| 241.19.19.040 | 19 mm | 8 mm | 40 mm | 4.6 | |
| 241.19.19.050 | 19 mm | 8 mm | 50 mm | 6.1 | |
| 241.19.19.075 | 19 mm | 8 mm | 75 mm | 10.1 | |
| 241.19.19.100 | 19 mm | 8 mm | 100 mm | 14.1 | |
| 241.19.25.030 | 25 mm | 10 mm | 30 mm | 2.6 | |
| 241.19.25.050 | 25 mm | 10 mm | 50 mm | 5.1 | |
| 241.19.25.075 | 25 mm | 10 mm | 75 mm | 8.1 | |
| 241.19.25.100 | 25 mm | 10 mm | 100 mm | 12.1 | |
| 241.19.25.125 | 25 mm | 10 mm | 125 mm | 14.1 | |
| 241.19.32.035 | 32 mm | 12.5 mm | 35 mm | 3.1 | |
| 241.19.32.050 | 32 mm | 12.5 mm | 50 mm | 5.6 | |
| 241.19.32.075 | 32 mm | 12.5 mm | 75 mm | 9.1 | |
| 241.19.32.100 | 32 mm | 12.5 mm | 100 mm | 13.1 | |
| 241.19.32.125 | 32 mm | 12.5 mm | 125 mm | 16.1 | |
| 241.19.32.150 | 32 mm | 12.5 mm | 150 mm | 19.1 | |
| 241.19.38.040 | 38 mm | 16 mm | 40 mm | 3.6 | |
| 241.19.38.050 | 38 mm | 16 mm | 50 mm | 5.1 | |
| 241.19.38.075 | 38 mm | 16 mm | 75 mm | 9.1 | |
| 241.19.38.100 | 38 mm | 16 mm | 100 mm | 13.1 | |
| 241.19.38.150 | 38 mm | 16 mm | 150 mm | 19.1 | |
| 241.19.38.200 | 38 mm | 16 mm | 200 mm | 27.1 |
