242.01. Disc spring DIN 2093

242.01. Disc spring DIN 2093

Material:
50 CrV 4 Vanadium Spring Steel

Note:
FIBRO Disc springs 242.01. are made from 50 CrV 4 premier grade spring steel. This “classic” spring material guarantes optimal performance levels within the temperature range from –15 °C to +150 °C. “Hot pressetting” allows working temperatures from –25 °C to +200 °C.

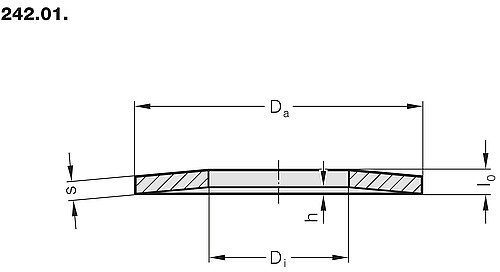

Da = outside diameter of spring
Di = diameter of hole
s = crossectional thickness of spring
h = concavity of free spring
l0 = total height of free spring
f = deflection of spring, caused by load F
F = load F [N], causing deflection f

SKU: 242-01-
Order No
Outside diameter
Inner diameter
Thickness
Height
Log in to view price, availability, and order the product.

Products

Showing 1-10 of 27 items
SKU Outside diameter Inner diameter Thickness Height
242.01.080.032.040 8 mm 3.2 mm 0.4 mm 0.6 mm
242.01.100.052.040 10 mm 5.2 mm 0.4 mm 0.7 mm
242.01.125.062.050 12.5 mm 6.2 mm 0.5 mm 0.85 mm
242.01.140.072.080 14 mm 7.2 mm 0.8 mm 1.1 mm
242.01.150.052.070 15 mm 5.2 mm 0.7 mm 1.1 mm
242.01.160.082.060 16 mm 8.2 mm 0.6 mm 1.05 mm
242.01.160.082.090 16 mm 8.2 mm 0.9 mm 1.25 mm
242.01.180.092.100 18 mm 9.2 mm 1 mm 1.4 mm
242.01.200.102.080 20 mm 10.2 mm 0.8 mm 1.35 mm
242.01.200.102.090 20 mm 10.2 mm 0.9 mm 1.45 mm
242.01.200.102.110 20 mm 10.2 mm 1.1 mm 1.55 mm
242.01.230.122.125 23 mm 12.2 mm 1.25 mm 1.85 mm
242.01.250.122.100 25 mm 12.2 mm 1 mm 1.6 mm
242.01.250.122.150 25 mm 12.2 mm 1.5 mm 2.05 mm
242.01.280.142.100 28 mm 14.2 mm 1 mm 1.8 mm
242.01.280.142.150 28 mm 14.2 mm 1.5 mm 2.15 mm
242.01.315.163.125 31.5 mm 16.3 mm 1.25 mm 2.15 mm
242.01.315.163.175 31.5 mm 16.3 mm 1.75 mm 2.45 mm
242.01.355.183.200 35.5 mm 18.3 mm 2 mm 2.8 mm
242.01.400.142.150 40 mm 14.2 mm 1.5 mm 2.75 mm
242.01.400.204.225 40 mm 20.4 mm 2.25 mm 3.15 mm
242.01.450.224.250 45 mm 22.4 mm 2.5 mm 3.5 mm
242.01.500.183.150 50 mm 18.3 mm 1.5 mm 3.3 mm
242.01.500.254.250 50 mm 25.4 mm 2.5 mm 3.9 mm
242.01.500.254.300 50 mm 25.4 mm 3 mm 4.1 mm
242.01.560.285.200 56 mm 28.5 mm 2 mm 3.6 mm
242.01.600.204.200 60 mm 20.4 mm 2 mm 4.1 mm
