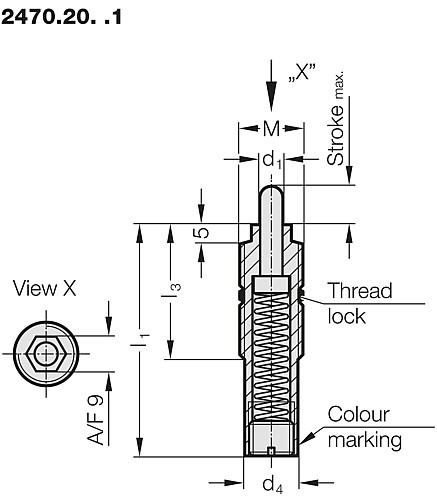

2470.20._.1 Spring plunger, low maintenance, standard spring force, VDI 3004, Colour marking: yellow
Description:
Spring plungers are used as ejectors, damper pins, fixing and retaining pins in many sectors of the tool-, jig- and fixture-making industries. Assembly requires the use of special FIBRO insertion tool (2470.10.11). Execution:
Spring clamps made from high performance plastic
Lateral load depending on stroke length up to max. 10° permissible (see table). Note:
Working temperature: 0 °C to +80 °C
Max. recommended extensions per minute: approx. 120 (at 20 °C)
Max. piston rod speed: 1.6 m/s
Spring plungers are used as ejectors, damper pins, fixing and retaining pins in many sectors of the tool-, jig- and fixture-making industries. Assembly requires the use of special FIBRO insertion tool (2470.10.11). Execution:
Spring clamps made from high performance plastic
Lateral load depending on stroke length up to max. 10° permissible (see table). Note:
Working temperature: 0 °C to +80 °C
Max. recommended extensions per minute: approx. 120 (at 20 °C)
Max. piston rod speed: 1.6 m/s
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 14 items
| SKU | Peg diameter | Screw-in thread | Length | Max. stroke | |
|---|---|---|---|---|---|
| 2470.20.010.016.060.1 | 6 mm | 16x1.5 | 60 mm | 10 mm | |
| 2470.20.010.060.1 | 6 mm | 16x2 | 60 mm | 10 mm | |
| 2470.20.015.016.060.1 | 6 mm | 16x1.5 | 60 mm | 15 mm | |
| 2470.20.015.060.1 | 6 mm | 16x2 | 60 mm | 15 mm | |
| 2470.20.020.016.080.1 | 6 mm | 16x1.5 | 80 mm | 20 mm | |
| 2470.20.020.080.1 | 6 mm | 16x2 | 80 mm | 20 mm | |
| 2470.20.030.016.080.1 | 6 mm | 16x1.5 | 80 mm | 30 mm | |
| 2470.20.030.016.120.1 | 6 mm | 16x1.5 | 120 mm | 30 mm | |
| 2470.20.030.080.1 | 6 mm | 16x2 | 80 mm | 30 mm | |
| 2470.20.030.120.1 | 6 mm | 16x2 | 120 mm | 30 mm | |
| 2470.20.040.016.150.1 | 6 mm | 16x1.5 | 150 mm | 40 mm | |
| 2470.20.040.150.1 | 6 mm | 16x2 | 150 mm | 40 mm | |
| 2470.20.050.016.150.1 | 6 mm | 16x1.5 | 150 mm | 50 mm | |
| 2470.20.050.150.1 | 6 mm | 16x2 | 150 mm | 50 mm |
