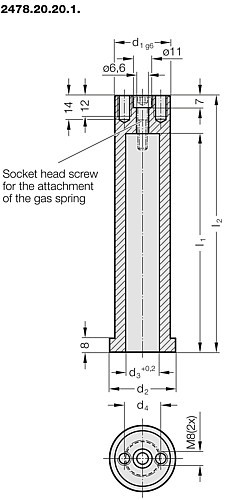

2478.20.20.1. Guide pillar for lifting unit to Mercedes-Benz
Material:
Steel, surface hardened
induction hardened 60 + 3 HRC
Hardness penetration depth > 1.8 mm Note:
The socket head screw for the attachment of the gas spring is included with delivery.
Steel, surface hardened
induction hardened 60 + 3 HRC
Hardness penetration depth > 1.8 mm Note:
The socket head screw for the attachment of the gas spring is included with delivery.
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 3 items
| SKU | Size | Guide diameter | Length | |
|---|---|---|---|---|
| 2478.20.20.1.01 | 1 | 32 mm | 113 mm | |
| 2478.20.20.1.02 | 2 | 32 mm | 148 mm | |
| 2478.20.20.1.03 | 3 | 32 mm | 208 mm |
