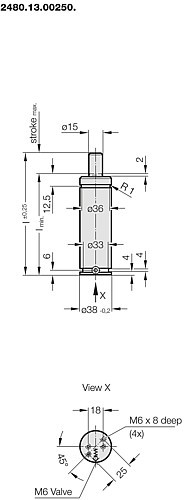

2480.13.00250. Gas spring Standard

2480.13.00250. Gas spring Standard

New generation available – see product alternatives
Note:

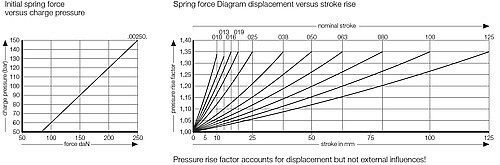

Initial spring force at 150 bar = 250 daN

Order No for spare parts kit: 2480.13.00250
Gas spring without valve
Order No (example): 2480.13.00250. .P

Pressure medium: Nitrogen N2
Max. filling pressure: 150 bar
Min. filling pressure: 50 bar
Working temperature: 0°C to +80°C
Temperature related force increase: ± 0.3%/°C
Max. recommended extensions per minute: approx. 80 to 100 (at 20°C)
Max. piston rod speed: 1.6 m/s
SKU: 2480-13-00250-
Order No
Design
NENN
250 daN Reset
Max. stroke
HUB
GDF cylinder pipe diameter
38 mm Reset
Piston rod diameter
15 mm Reset
Length
Log in to view price, availability, and order the product.

Products

Showing 1-10 of 22 items
SKU Design NENN Max. stroke HUB GDF cylinder pipe diameter Piston rod diameter Length
2480.13.00250.010 with valve 250 daN 10 mm 11 38 mm 15 mm 70 mm
2480.13.00250.010.P without valve 250 daN 10 mm 11 38 mm 15 mm 70 mm
2480.13.00250.013 with valve 250 daN 12.7 mm 13 38 mm 15 mm 75.4 mm
2480.13.00250.013.P without valve 250 daN 12.7 mm 13 38 mm 15 mm 75.4 mm
2480.13.00250.016 with valve 250 daN 16 mm 17 38 mm 15 mm 82 mm
2480.13.00250.016.P without valve 250 daN 16 mm 17 38 mm 15 mm 82 mm
2480.13.00250.019 with valve 250 daN 19 mm 20 38 mm 15 mm 88 mm
2480.13.00250.019.P without valve 250 daN 19 mm 20 38 mm 15 mm 88 mm
2480.13.00250.025 with valve 250 daN 25 mm 26 38 mm 15 mm 100 mm
2480.13.00250.025.P without valve 250 daN 25 mm 26 38 mm 15 mm 100 mm
2480.13.00250.038 with valve 250 daN 38.1 mm 39 38 mm 15 mm 126.2 mm
2480.13.00250.038.P without valve 250 daN 38.1 mm 39 38 mm 15 mm 126.2 mm
2480.13.00250.050 with valve 250 daN 50 mm 51 38 mm 15 mm 150 mm
2480.13.00250.050.P without valve 250 daN 50 mm 51 38 mm 15 mm 150 mm
2480.13.00250.063 with valve 250 daN 63.5 mm 64 38 mm 15 mm 177 mm
2480.13.00250.063.P without valve 250 daN 63.5 mm 64 38 mm 15 mm 177 mm
2480.13.00250.080 with valve 250 daN 80 mm 81 38 mm 15 mm 210 mm
2480.13.00250.080.P without valve 250 daN 80 mm 81 38 mm 15 mm 210 mm
2480.13.00250.100 with valve 250 daN 100 mm 101 38 mm 15 mm 250 mm
2480.13.00250.100.P without valve 250 daN 100 mm 101 38 mm 15 mm 250 mm
2480.13.00250.125 with valve 250 daN 125 mm 126 38 mm 15 mm 300 mm
2480.13.00250.125.P without valve 250 daN 125 mm 126 38 mm 15 mm 300 mm
