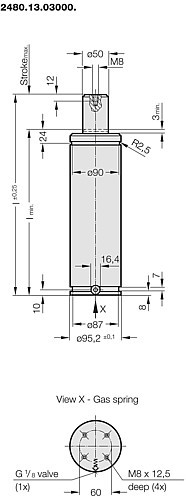

2480.13.03000. Gas spring Standard

2480.13.03000. Gas spring Standard

New generation available – see product alternatives
Note:

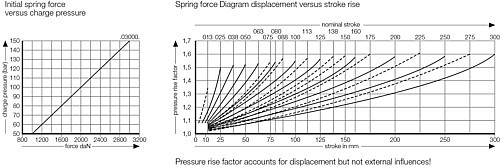

Initial spring force at 150 bar = 3000 daN

Order No for spare parts kit: 2480.13.03000
Order No for spare parts kit: to Renault standard EM24.54.700 2480.13.03000.R

Gas spring without valve
Order No (example): 2480.13.03000. .P

Gas spring to Renault standard EM24.54.700
Order No (example): 2480.13.03000. .R
Gas spring to Renault standard EM24.54.700 without valve
Order No (example): 2480.13.03000. .R.P

1) Special stroke lengths
Not for gas springs to Renault Standard EM24.54.700.

Pressure medium: Nitrogen N2
Max. filling pressure: 150 bar
Min. filling pressure: 25 bar
Working temperature: 0°C to +80°C
Temperature related force increase: ± 0.3%/°C
Max. recommended extensions per minute: approx. 15 to 40 (at 20°C)
Max. piston rod speed: 1.6 m/s
for 2480. ... .R: 2.0 m/s
SKU: 2480-13-03000-
Order No
Design
Spring force start
3000 daN Reset
Max. stroke
HUB
Cylinder pipe diameter
95.2 mm Reset
Piston rod diameter
50 mm Reset
Length
Log in to view price, availability, and order the product.

Products

Showing 1-10 of 62 items
SKU Design Spring force start Max. stroke HUB Cylinder pipe diameter Piston rod diameter Length
2480.13.03000.013 with valve 3000 daN 12.7 mm 13 95.2 mm 50 mm 145 mm
2480.13.03000.013.P without valve 3000 daN 12.7 mm 13 95.2 mm 50 mm 145 mm
2480.13.03000.025 with valve 3000 daN 25 mm 26 95.2 mm 50 mm 170 mm
2480.13.03000.025.P without valve 3000 daN 25 mm 26 95.2 mm 50 mm 170 mm
2480.13.03000.025.R mit Ventil - Renault 3000 daN 25 mm 26 95.2 mm 50 mm 170 mm
2480.13.03000.025.R.P one Ventil - Renault 3000 daN 25 mm 26 95.2 mm 50 mm 170 mm
2480.13.03000.038 with valve 3000 daN 38.1 mm 39 95.2 mm 50 mm 196.2 mm
2480.13.03000.038.P without valve 3000 daN 38.1 mm 39 95.2 mm 50 mm 196.2 mm
2480.13.03000.038.R mit Ventil - Renault 3000 daN 38.1 mm 39 95.2 mm 50 mm 196.2 mm
2480.13.03000.038.R.P one Ventil - Renault 3000 daN 38.1 mm 39 95.2 mm 50 mm 196.2 mm
2480.13.03000.050 with valve 3000 daN 50 mm 51 95.2 mm 50 mm 220 mm
2480.13.03000.050.P without valve 3000 daN 50 mm 51 95.2 mm 50 mm 220 mm
2480.13.03000.050.R mit Ventil - Renault 3000 daN 50 mm 51 95.2 mm 50 mm 220 mm
2480.13.03000.050.R.P one Ventil - Renault 3000 daN 50 mm 51 95.2 mm 50 mm 220 mm
2480.13.03000.063 with valve 3000 daN 63.5 mm 64 95.2 mm 50 mm 247 mm
2480.13.03000.063.P without valve 3000 daN 63.5 mm 64 95.2 mm 50 mm 247 mm
2480.13.03000.063.R mit Ventil - Renault 3000 daN 63.5 mm 64 95.2 mm 50 mm 247 mm
2480.13.03000.063.R.P one Ventil - Renault 3000 daN 63.5 mm 64 95.2 mm 50 mm 247 mm
2480.13.03000.075 with valve 3000 daN 75 mm 76 95.2 mm 50 mm 270 mm
2480.13.03000.075.P without valve 3000 daN 75 mm 76 95.2 mm 50 mm 270 mm
2480.13.03000.080 with valve 3000 daN 80 mm 81 95.2 mm 50 mm 280 mm
2480.13.03000.080.P without valve 3000 daN 80 mm 81 95.2 mm 50 mm 280 mm
2480.13.03000.080.R mit Ventil - Renault 3000 daN 80 mm 81 95.2 mm 50 mm 280 mm
2480.13.03000.080.R.P one Ventil - Renault 3000 daN 80 mm 81 95.2 mm 50 mm 280 mm
2480.13.03000.088.1 with valve 3000 daN 87.5 mm 88 95.2 mm 50 mm 295 mm
2480.13.03000.088.1.P without valve 3000 daN 87.5 mm 88 95.2 mm 50 mm 295 mm
2480.13.03000.100 with valve 3000 daN 100 mm 101 95.2 mm 50 mm 320 mm
2480.13.03000.100.P without valve 3000 daN 100 mm 101 95.2 mm 50 mm 320 mm
2480.13.03000.100.R mit Ventil - Renault 3000 daN 100 mm 101 95.2 mm 50 mm 320 mm
2480.13.03000.100.R.P one Ventil - Renault 3000 daN 100 mm 101 95.2 mm 50 mm 320 mm
2480.13.03000.113 with valve 3000 daN 112.5 mm 113 95.2 mm 50 mm 345 mm
2480.13.03000.113.P without valve 3000 daN 112.5 mm 113 95.2 mm 50 mm 345 mm
2480.13.03000.125 with valve 3000 daN 125 mm 126 95.2 mm 50 mm 370 mm
2480.13.03000.125.P without valve 3000 daN 125 mm 126 95.2 mm 50 mm 370 mm
2480.13.03000.125.R mit Ventil - Renault 3000 daN 125 mm 126 95.2 mm 50 mm 370 mm
2480.13.03000.125.R.P one Ventil - Renault 3000 daN 125 mm 126 95.2 mm 50 mm 370 mm
2480.13.03000.138 with valve 3000 daN 137.5 mm 138 95.2 mm 50 mm 395 mm
2480.13.03000.138.P without valve 3000 daN 137.5 mm 138 95.2 mm 50 mm 395 mm
2480.13.03000.150 with valve 3000 daN 150 mm 151 95.2 mm 50 mm 420 mm
2480.13.03000.150.P without valve 3000 daN 150 mm 151 95.2 mm 50 mm 420 mm
2480.13.03000.160 with valve 3000 daN 160 mm 161 95.2 mm 50 mm 440 mm
2480.13.03000.160.P without valve 3000 daN 160 mm 161 95.2 mm 50 mm 440 mm
2480.13.03000.160.R mit Ventil - Renault 3000 daN 160 mm 161 95.2 mm 50 mm 440 mm
2480.13.03000.160.R.P one Ventil - Renault 3000 daN 160 mm 161 95.2 mm 50 mm 440 mm
2480.13.03000.175 with valve 3000 daN 175 mm 176 95.2 mm 50 mm 470 mm
2480.13.03000.175.P without valve 3000 daN 175 mm 176 95.2 mm 50 mm 470 mm
2480.13.03000.200 with valve 3000 daN 200 mm 201 95.2 mm 50 mm 520 mm
2480.13.03000.200.P without valve 3000 daN 200 mm 201 95.2 mm 50 mm 520 mm
2480.13.03000.200.R mit Ventil - Renault 3000 daN 200 mm 201 95.2 mm 50 mm 520 mm
2480.13.03000.200.R.P one Ventil - Renault 3000 daN 200 mm 201 95.2 mm 50 mm 520 mm
2480.13.03000.225 with valve 3000 daN 225 mm 226 95.2 mm 50 mm 570 mm
2480.13.03000.225.P without valve 3000 daN 225 mm 226 95.2 mm 50 mm 570 mm
2480.13.03000.250 with valve 3000 daN 250 mm 251 95.2 mm 50 mm 620 mm
2480.13.03000.250.P without valve 3000 daN 250 mm 251 95.2 mm 50 mm 620 mm
2480.13.03000.250.R mit Ventil - Renault 3000 daN 250 mm 251 95.2 mm 50 mm 620 mm
2480.13.03000.250.R.P one Ventil - Renault 3000 daN 250 mm 251 95.2 mm 50 mm 620 mm
2480.13.03000.275 with valve 3000 daN 275 mm 276 95.2 mm 50 mm 670 mm
2480.13.03000.275.P without valve 3000 daN 275 mm 276 95.2 mm 50 mm 670 mm
2480.13.03000.300 with valve 3000 daN 300 mm 301 95.2 mm 50 mm 720 mm
2480.13.03000.300.P without valve 3000 daN 300 mm 301 95.2 mm 50 mm 720 mm
2480.13.03000.300.R mit Ventil - Renault 3000 daN 300 mm 301 95.2 mm 50 mm 720 mm
2480.13.03000.300.R.P one Ventil - Renault 3000 daN 300 mm 301 95.2 mm 50 mm 720 mm
