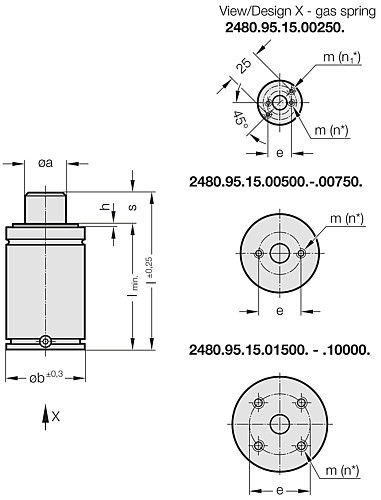

2480.95.15.00250. Gas spring Standard, for composite panel
Piston rod diameter SD = 15 mm, Compressed length LN = 60 mm, Length L = 70 mm, Order No BC = 2480.95.15.00250.010, Max. stroke HUBMAX = 10 mm, Hub Hub = 11, Initial spring force FA = 260 daN
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 11 items
| SKU | Max. stroke | Initial spring force | Piston rod diameter | Compressed length | Length | |
|---|---|---|---|---|---|---|
| 2480.95.15.00250.010 | 10 mm | 260 daN | 15 mm | 60 mm | 70 mm | |
| 2480.95.15.00250.013 | 12.7 mm | 260 daN | 15 mm | 62.7 mm | 75.4 mm | |
| 2480.95.15.00250.016 | 16 mm | 260 daN | 15 mm | 66 mm | 82 mm | |
| 2480.95.15.00250.019 | 19 mm | 260 daN | 15 mm | 69 mm | 88 mm | |
| 2480.95.15.00250.025 | 25 mm | 260 daN | 15 mm | 75 mm | 100 mm | |
| 2480.95.15.00250.038 | 38 mm | 260 daN | 15 mm | 88 mm | 126 mm | |
| 2480.95.15.00250.050 | 50 mm | 260 daN | 15 mm | 100 mm | 150 mm | |
| 2480.95.15.00250.063 | 63.5 mm | 260 daN | 15 mm | 113.5 mm | 177 mm | |
| 2480.95.15.00250.080 | 80 mm | 260 daN | 15 mm | 130 mm | 210 mm | |
| 2480.95.15.00250.100 | 100 mm | 260 daN | 15 mm | 150 mm | 250 mm | |
| 2480.95.15.00250.125 | 125 mm | 260 daN | 15 mm | 175 mm | 300 mm |
