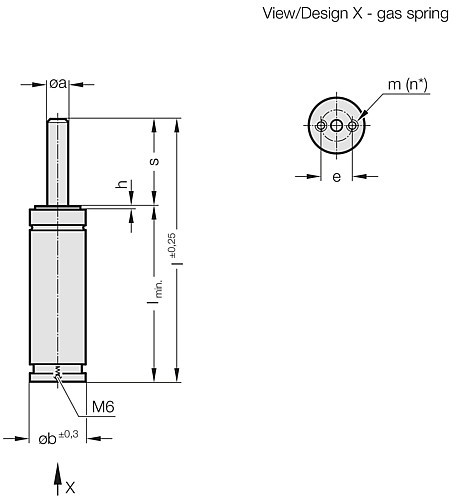

2480.95.25. Gas spring Standard, for composite panel

2480.95.25. Gas spring Standard, for composite panel

Note:
We recommend securing the fastening screws with medium-strength threadlocker adhesive and, from a plate thickness of 25 mm, additionally DIN 6798 Form A or SCHNORR® locking washer type S. (Not included!)
SKU: 2480-95-25-
Order No
Federkraft
200 daN Reset
Initial spring force
180 daN Reset
max. Fülldruck
180 bar Reset
min. Fülldruck
20 bar Reset
Piston rod diameter
12 mm Reset
GDF cylinder pipe diameter
32 mm Reset
Max. stroke
HUBBEST
Spring force stroke
Length
Compressed length
Thread
M6x8 Reset
Anzahl der Bohrungen
2 Reset
Teilkreis
18 mm Reset
Log in to view price, availability, and order the product.

Products

Showing 1-10 of 10 items
SKU Federkraft Initial spring force max. Fülldruck min. Fülldruck Piston rod diameter GDF cylinder pipe diameter Max. stroke HUBBEST Spring force stroke Length Compressed length Thread Anzahl der Bohrungen Teilkreis
2480.95.25.00200.010 200 daN 180 daN 180 bar 20 bar 12 mm 32 mm 10 mm 10 mm 233 daN 70 mm 60 mm M6x8 2 18 mm
2480.95.25.00200.013 200 daN 180 daN 180 bar 20 bar 12 mm 32 mm 12.7 mm 13 mm 230 daN 75.4 mm 62.7 mm M6x8 2 18 mm
2480.95.25.00200.016 200 daN 180 daN 180 bar 20 bar 12 mm 32 mm 16 mm 16 mm 232 daN 82 mm 66 mm M6x8 2 18 mm
2480.95.25.00200.025 200 daN 180 daN 180 bar 20 bar 12 mm 32 mm 25 mm 25 mm 231 daN 100 mm 75 mm M6x8 2 18 mm
2480.95.25.00200.038 200 daN 180 daN 180 bar 20 bar 12 mm 32 mm 38 mm 38 mm 230 daN 126 mm 88 mm M6x8 2 18 mm
2480.95.25.00200.050 200 daN 180 daN 180 bar 20 bar 12 mm 32 mm 50 mm 50 mm 230 daN 150 mm 100 mm M6x8 2 18 mm
2480.95.25.00200.063 200 daN 180 daN 180 bar 20 bar 12 mm 32 mm 63.5 mm 63 mm 230 daN 177 mm 113.5 mm M6x8 2 18 mm
2480.95.25.00200.080 200 daN 180 daN 180 bar 20 bar 12 mm 32 mm 80 mm 80 mm 230 daN 210 mm 130 mm M6x8 2 18 mm
2480.95.25.00200.100 200 daN 180 daN 180 bar 20 bar 12 mm 32 mm 100 mm 100 mm 230 daN 250 mm 150 mm M6x8 2 18 mm
2480.95.25.00200.125 200 daN 180 daN 180 bar 20 bar 12 mm 32 mm 125 mm 125 mm 230 daN 300 mm 175 mm M6x8 2 18 mm
