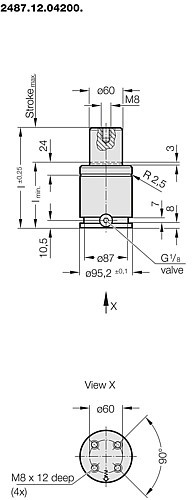

2487.12.04200. Gas spring POWERLINE

2487.12.04200. Gas spring POWERLINE

New generation available – see product alternatives
Note:
Initial spring force at 150 bar = 4200 daN

Order No for spare parts kit: 2487.12.04200

Gas spring without valve
Order No (example): 2487.12.04200. .P

Pressure medium: Nitr
SKU: 2487-12-04200-
Order No
Design
Spring force start
4200 daN Reset
Max. stroke
Cylinder pipe diameter
95.2 mm Reset
Piston rod diameter
60 mm Reset
Length
Log in to view price, availability, and order the product.

Products

Showing 1-10 of 22 items
SKU Design Spring force start Max. stroke Cylinder pipe diameter Piston rod diameter Length
2487.12.04200.016 with valve 4200 daN 16 mm 95.2 mm 60 mm 90 mm
2487.12.04200.016.P without valve 4200 daN 16 mm 95.2 mm 60 mm 90 mm
2487.12.04200.019 with valve 4200 daN 19 mm 95.2 mm 60 mm 96 mm
2487.12.04200.019.P without valve 4200 daN 19 mm 95.2 mm 60 mm 96 mm
2487.12.04200.025 with valve 4200 daN 25 mm 95.2 mm 60 mm 108 mm
2487.12.04200.025.P without valve 4200 daN 25 mm 95.2 mm 60 mm 108 mm
2487.12.04200.032 with valve 4200 daN 32 mm 95.2 mm 60 mm 122 mm
2487.12.04200.032.P without valve 4200 daN 32 mm 95.2 mm 60 mm 122 mm
2487.12.04200.038 with valve 4200 daN 38 mm 95.2 mm 60 mm 134 mm
2487.12.04200.038.P without valve 4200 daN 38 mm 95.2 mm 60 mm 134 mm
2487.12.04200.050 with valve 4200 daN 50 mm 95.2 mm 60 mm 158 mm
2487.12.04200.050.P without valve 4200 daN 50 mm 95.2 mm 60 mm 158 mm
2487.12.04200.063 with valve 4200 daN 63 mm 95.2 mm 60 mm 184 mm
2487.12.04200.063.P without valve 4200 daN 63 mm 95.2 mm 60 mm 184 mm
2487.12.04200.075 with valve 4200 daN 75 mm 95.2 mm 60 mm 208 mm
2487.12.04200.075.P without valve 4200 daN 75 mm 95.2 mm 60 mm 208 mm
2487.12.04200.080 with valve 4200 daN 80 mm 95.2 mm 60 mm 218 mm
2487.12.04200.080.P without valve 4200 daN 80 mm 95.2 mm 60 mm 218 mm
2487.12.04200.100 with valve 4200 daN 100 mm 95.2 mm 60 mm 258 mm
2487.12.04200.100.P without valve 4200 daN 100 mm 95.2 mm 60 mm 258 mm
2487.12.04200.125 with valve 4200 daN 125 mm 95.2 mm 60 mm 308 mm
2487.12.04200.125.P without valve 4200 daN 125 mm 95.2 mm 60 mm 308 mm
