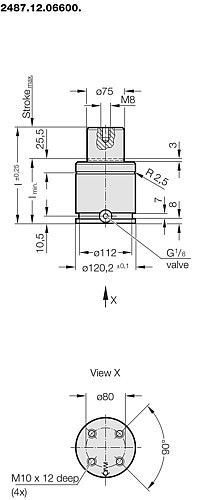

2487.12.06600. Gas spring POWERLINE
New generation available – see product alternatives
Note:
Initial spring force at 150 bar = 6630 daN
Order No for spare parts kit: 2487.12.06600
Gas spring without valve
Order No (example): 2487.12.06600. .P
Pressure medium: Nitr
Initial spring force at 150 bar = 6630 daN
Order No for spare parts kit: 2487.12.06600
Gas spring without valve
Order No (example): 2487.12.06600. .P
Pressure medium: Nitr
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 22 items
| SKU | Design | Spring force start | Max. stroke | Cylinder pipe diameter | Piston rod diameter | Length | |
|---|---|---|---|---|---|---|---|
| 2487.12.06600.016 | with valve | 6600 daN | 16 mm | 120.2 mm | 75 mm | 100 mm | |
| 2487.12.06600.016.P | without valve | 6600 daN | 16 mm | 120.2 mm | 75 mm | 100 mm | |
| 2487.12.06600.019 | with valve | 6600 daN | 19 mm | 120.2 mm | 75 mm | 106 mm | |
| 2487.12.06600.019.P | without valve | 6600 daN | 19 mm | 120.2 mm | 75 mm | 106 mm | |
| 2487.12.06600.025 | with valve | 6600 daN | 25 mm | 120.2 mm | 75 mm | 118 mm | |
| 2487.12.06600.025.P | without valve | 6600 daN | 25 mm | 120.2 mm | 75 mm | 118 mm | |
| 2487.12.06600.032 | with valve | 6600 daN | 32 mm | 120.2 mm | 75 mm | 132 mm | |
| 2487.12.06600.032.P | without valve | 6600 daN | 32 mm | 120.2 mm | 75 mm | 132 mm | |
| 2487.12.06600.038 | with valve | 6600 daN | 38 mm | 120.2 mm | 75 mm | 144 mm | |
| 2487.12.06600.038.P | without valve | 6600 daN | 38 mm | 120.2 mm | 75 mm | 144 mm | |
| 2487.12.06600.050 | with valve | 6600 daN | 50 mm | 120.2 mm | 75 mm | 168 mm | |
| 2487.12.06600.050.P | without valve | 6600 daN | 50 mm | 120.2 mm | 75 mm | 168 mm | |
| 2487.12.06600.063 | with valve | 6600 daN | 63 mm | 120.2 mm | 75 mm | 194 mm | |
| 2487.12.06600.063.P | without valve | 6600 daN | 63 mm | 120.2 mm | 75 mm | 194 mm | |
| 2487.12.06600.075 | with valve | 6600 daN | 75 mm | 120.2 mm | 75 mm | 218 mm | |
| 2487.12.06600.075.P | without valve | 6600 daN | 75 mm | 120.2 mm | 75 mm | 218 mm | |
| 2487.12.06600.080 | with valve | 6600 daN | 80 mm | 120.2 mm | 75 mm | 228 mm | |
| 2487.12.06600.080.P | without valve | 6600 daN | 80 mm | 120.2 mm | 75 mm | 228 mm | |
| 2487.12.06600.100 | with valve | 6600 daN | 100 mm | 120.2 mm | 75 mm | 268 mm | |
| 2487.12.06600.100.P | without valve | 6600 daN | 100 mm | 120.2 mm | 75 mm | 268 mm | |
| 2487.12.06600.125 | with valve | 6600 daN | 125 mm | 120.2 mm | 75 mm | 318 mm | |
| 2487.12.06600.125.P | without valve | 6600 daN | 125 mm | 120.2 mm | 75 mm | 318 mm |
