2487.15.00350. Gas spring POWERLINE
Note:

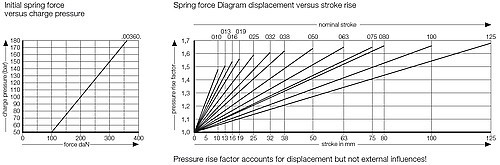

Initial spring force at 180 bar = 360 daN
Order No for spare parts kit: 2487.15.00350
(Stroke length 10 not repairable)
Gas spring without valve
Order No (example): 2487.15.0035
Initial spring force at 180 bar = 360 daN
Order No for spare parts kit: 2487.15.00350
(Stroke length 10 not repairable)
Gas spring without valve
Order No (example): 2487.15.0035
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 26 items
| SKU | Design | Spring force start | Max. stroke | |
|---|---|---|---|---|
| 2487.15.00350.010 | with valve | 360 daN | 10 mm | |
| 2487.15.00350.010.P | without valve | 360 daN | 10 mm | |
| 2487.15.00350.013 | with valve | 360 daN | 13 mm | |
| 2487.15.00350.013.P | without valve | 360 daN | 13 mm | |
| 2487.15.00350.016 | with valve | 360 daN | 16 mm | |
| 2487.15.00350.016.P | without valve | 360 daN | 16 mm | |
| 2487.15.00350.019 | with valve | 360 daN | 19 mm | |
| 2487.15.00350.019.P | without valve | 360 daN | 19 mm | |
| 2487.15.00350.025 | with valve | 360 daN | 25 mm | |
| 2487.15.00350.025.P | without valve | 360 daN | 25 mm | |
| 2487.15.00350.032 | with valve | 360 daN | 32 mm | |
| 2487.15.00350.032.P | without valve | 360 daN | 32 mm | |
| 2487.15.00350.038 | with valve | 360 daN | 38 mm | |
| 2487.15.00350.038.P | without valve | 360 daN | 38 mm | |
| 2487.15.00350.050 | with valve | 360 daN | 50 mm | |
| 2487.15.00350.050.P | without valve | 360 daN | 50 mm | |
| 2487.15.00350.063 | with valve | 360 daN | 63 mm | |
| 2487.15.00350.063.P | without valve | 360 daN | 63 mm | |
| 2487.15.00350.075 | with valve | 360 daN | 75 mm | |
| 2487.15.00350.075.P | without valve | 360 daN | 75 mm | |
| 2487.15.00350.080 | with valve | 360 daN | 80 mm | |
| 2487.15.00350.080.P | without valve | 360 daN | 80 mm | |
| 2487.15.00350.100 | with valve | 360 daN | 100 mm | |
| 2487.15.00350.100.P | without valve | 360 daN | 100 mm | |
| 2487.15.00350.125 | with valve | 360 daN | 125 mm | |
| 2487.15.00350.125.P | without valve | 360 daN | 125 mm |
