2487.15.09500. Gas spring POWERLINE
Note:

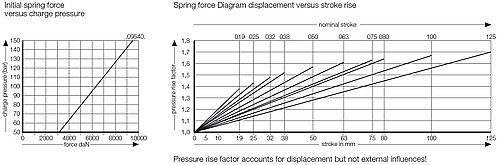

Initial spring force at 150 bar = 9540 daN
Order No for spare parts kit: 2487.15.09500
(Stroke length 19 not repairable)
Gas spring without valve
Order No (example): 2487.15.095
Initial spring force at 150 bar = 9540 daN
Order No for spare parts kit: 2487.15.09500
(Stroke length 19 not repairable)
Gas spring without valve
Order No (example): 2487.15.095
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 20 items
| SKU | Design | Spring force start | Max. stroke | |
|---|---|---|---|---|
| 2487.15.09500.019 | with valve | 9540 daN | 19 mm | |
| 2487.15.09500.019.P | without valve | 9540 daN | 19 mm | |
| 2487.15.09500.025 | with valve | 9540 daN | 25 mm | |
| 2487.15.09500.025.P | without valve | 9540 daN | 25 mm | |
| 2487.15.09500.032 | with valve | 9540 daN | 32 mm | |
| 2487.15.09500.032.P | without valve | 9540 daN | 32 mm | |
| 2487.15.09500.038 | with valve | 9540 daN | 38 mm | |
| 2487.15.09500.038.P | without valve | 9540 daN | 38 mm | |
| 2487.15.09500.050 | with valve | 9540 daN | 50 mm | |
| 2487.15.09500.050.P | without valve | 9540 daN | 50 mm | |
| 2487.15.09500.063 | with valve | 9540 daN | 63 mm | |
| 2487.15.09500.063.P | without valve | 9540 daN | 63 mm | |
| 2487.15.09500.075 | with valve | 9540 daN | 75 mm | |
| 2487.15.09500.075.P | without valve | 9540 daN | 75 mm | |
| 2487.15.09500.080 | with valve | 9540 daN | 80 mm | |
| 2487.15.09500.080.P | without valve | 9540 daN | 80 mm | |
| 2487.15.09500.100 | with valve | 9540 daN | 100 mm | |
| 2487.15.09500.100.P | without valve | 9540 daN | 100 mm | |
| 2487.15.09500.125 | with valve | 9540 daN | 125 mm | |
| 2487.15.09500.125.P | without valve | 9540 daN | 125 mm |
