2487.15.20000. Gas spring POWERLINE
Note:

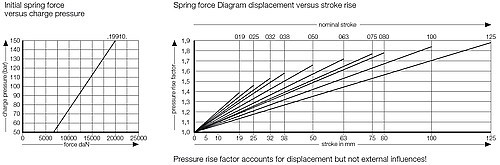

Initial spring force at 150 bar = 19910 daN
Order No for spare parts kit: 2487.15.20000
(Stroke length 19 and 25 not repairable)
Gas spring without valve
Order No (example): 248
Initial spring force at 150 bar = 19910 daN
Order No for spare parts kit: 2487.15.20000
(Stroke length 19 and 25 not repairable)
Gas spring without valve
Order No (example): 248
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 20 items
| SKU | Design | Spring force start | Max. stroke | |
|---|---|---|---|---|
| 2487.15.20000.019 | with valve | 19910 daN | 19 mm | |
| 2487.15.20000.019.P | without valve | 19910 daN | 19 mm | |
| 2487.15.20000.025 | with valve | 19910 daN | 25 mm | |
| 2487.15.20000.025.P | without valve | 19910 daN | 25 mm | |
| 2487.15.20000.032 | with valve | 19910 daN | 32 mm | |
| 2487.15.20000.032.P | without valve | 19910 daN | 32 mm | |
| 2487.15.20000.038 | with valve | 19910 daN | 38 mm | |
| 2487.15.20000.038.P | without valve | 19910 daN | 38 mm | |
| 2487.15.20000.050 | with valve | 19910 daN | 50 mm | |
| 2487.15.20000.050.P | without valve | 19910 daN | 50 mm | |
| 2487.15.20000.063 | with valve | 19910 daN | 63 mm | |
| 2487.15.20000.063.P | without valve | 19910 daN | 63 mm | |
| 2487.15.20000.075 | with valve | 19910 daN | 75 mm | |
| 2487.15.20000.075.P | without valve | 19910 daN | 75 mm | |
| 2487.15.20000.080 | with valve | 19910 daN | 80 mm | |
| 2487.15.20000.080.P | without valve | 19910 daN | 80 mm | |
| 2487.15.20000.100 | with valve | 19910 daN | 100 mm | |
| 2487.15.20000.100.P | without valve | 19910 daN | 100 mm | |
| 2487.15.20000.125 | with valve | 19910 daN | 125 mm | |
| 2487.15.20000.125.P | without valve | 19910 daN | 125 mm |
