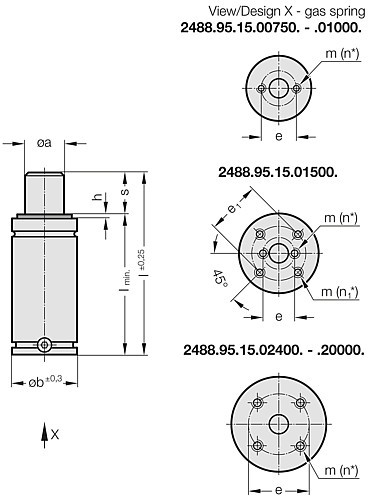

2488.95.15.00750. Gas spring HEAVY DUTY, for composite panel
Spring force start FA = 740 daN, Piston rod diameter SD = 25 mm, Compressed length LN = 97.7 mm, Length L = 110.7 mm, Order No BC = 2488.95.15.00750.013, Max. stroke HUBMAX = 13 mm, Hub Hub = 14
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 13 items
| SKU | Max. stroke | Spring force start | Piston rod diameter | Compressed length | Length | |
|---|---|---|---|---|---|---|
| 2488.95.15.00750.013 | 13 mm | 740 daN | 25 mm | 97.7 mm | 110.7 mm | |
| 2488.95.15.00750.025 | 25 mm | 740 daN | 25 mm | 110 mm | 135 mm | |
| 2488.95.15.00750.038 | 38 mm | 740 daN | 25 mm | 123 mm | 161 mm | |
| 2488.95.15.00750.050 | 50 mm | 740 daN | 25 mm | 135 mm | 185 mm | |
| 2488.95.15.00750.063 | 63 mm | 740 daN | 25 mm | 148.5 mm | 211.5 mm | |
| 2488.95.15.00750.075 | 75 mm | 740 daN | 25 mm | 160 mm | 235 mm | |
| 2488.95.15.00750.080 | 80 mm | 740 daN | 25 mm | 165 mm | 245 mm | |
| 2488.95.15.00750.100 | 100 mm | 740 daN | 25 mm | 185 mm | 285 mm | |
| 2488.95.15.00750.125 | 125 mm | 740 daN | 25 mm | 210 mm | 335 mm | |
| 2488.95.15.00750.150 | 150 mm | 740 daN | 25 mm | 235 mm | 385 mm | |
| 2488.95.15.00750.160 | 160 mm | 740 daN | 25 mm | 245 mm | 405 mm | |
| 2488.95.15.00750.175 | 175 mm | 740 daN | 25 mm | 260 mm | 435 mm | |
| 2488.95.15.00750.200 | 200 mm | 740 daN | 25 mm | 285 mm | 485 mm |
