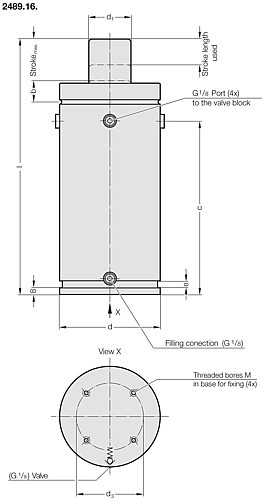

2489.16. Controllable gas spring, passive
Order No BC = 2489.16.01500, Nominal force IDNR = 1500 daN, Max. stroke NH = 30 mm, Stroke H = 20, Cylinder pipe diameter D = 95 mm, Piston rod diameter D1 = 36 mm
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 3 items
| SKU | Nominal force | Max. stroke | Stroke | Cylinder pipe diameter | Piston rod diameter | |
|---|---|---|---|---|---|---|
| 2489.16.01500 | 1500 daN | 30 mm | 20 | 95 mm | 36 mm | |
| 2489.16.03000 | 3000 daN | 30 mm | 20 | 120 mm | 50 mm | |
| 2489.16.05000 | 5000 daN | 35 mm | 30 | 150 mm | 65 mm |
