2490.15.01800. Gas spring Compact
Note:

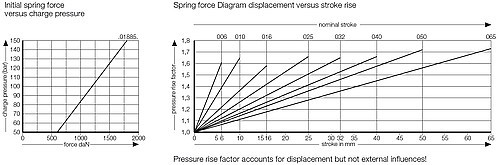

Initial spring force at 150 bar = 1885 daN
Order No for spare parts kit: 2490.15.01800
Gas spring without valve
Order No (example): 2490.15.01800. .P
Pressure medium: Nitrogen N2
Max. filling pressure: 150 bar
Min. filling pressure: 20 bar
Working temperature: 0°C to +80°C
Temperature related force increase: ± 0.3%/°C
Max. recommended extensions per minute: approx. 50 to 100 (at 20°C)
Max. piston rod speed: 0.8 m/s
Initial spring force at 150 bar = 1885 daN
Order No for spare parts kit: 2490.15.01800
Gas spring without valve
Order No (example): 2490.15.01800. .P
Pressure medium: Nitrogen N2
Max. filling pressure: 150 bar
Min. filling pressure: 20 bar
Working temperature: 0°C to +80°C
Temperature related force increase: ± 0.3%/°C
Max. recommended extensions per minute: approx. 50 to 100 (at 20°C)
Max. piston rod speed: 0.8 m/s
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 8 items
| SKU | Spring force start | HUBMAX | HUB | Cylinder pipe diameter | Piston rod diameter | L | |
|---|---|---|---|---|---|---|---|
| 2490.15.01800.006 | 1885 daN | 6 mm | 7 | 50 mm | 25 mm | 66 mm | |
| 2490.15.01800.010 | 1885 daN | 10 mm | 11 | 50 mm | 25 mm | 80 mm | |
| 2490.15.01800.016 | 1885 daN | 16 mm | 17 | 50 mm | 25 mm | 106 mm | |
| 2490.15.01800.025 | 1885 daN | 25 mm | 26 | 50 mm | 25 mm | 135 mm | |
| 2490.15.01800.032 | 1885 daN | 32 mm | 33 | 50 mm | 25 mm | 162 mm | |
| 2490.15.01800.040 | 1885 daN | 40 mm | 41 | 50 mm | 25 mm | 190 mm | |
| 2490.15.01800.050 | 1885 daN | 50 mm | 51 | 50 mm | 25 mm | 220 mm | |
| 2490.15.01800.065 | 1885 daN | 65 mm | 66 | 50 mm | 25 mm | 271 mm |
