2490.15.11800. Gas spring Compact
Note:

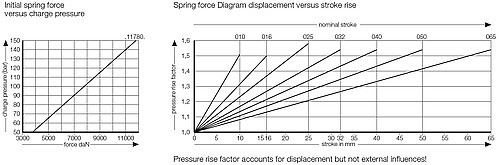

Initial spring force at 150 bar = 11780 daN
Order No for spare parts kit: 2490.15.11800
Gas spring without valve
Order No (example): 2490.15.11800. .P
Pressure medium: Nit
Initial spring force at 150 bar = 11780 daN
Order No for spare parts kit: 2490.15.11800
Gas spring without valve
Order No (example): 2490.15.11800. .P
Pressure medium: Nit
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 7 items
| SKU | Spring force start | Max. stroke | |
|---|---|---|---|
| 2490.15.11800.010 | 11780 daN | 10 mm | |
| 2490.15.11800.016 | 11780 daN | 16 mm | |
| 2490.15.11800.025 | 11780 daN | 25 mm | |
| 2490.15.11800.032 | 11780 daN | 32 mm | |
| 2490.15.11800.040 | 11780 daN | 40 mm | |
| 2490.15.11800.050 | 11780 daN | 50 mm | |
| 2490.15.11800.065 | 11780 daN | 65 mm |
