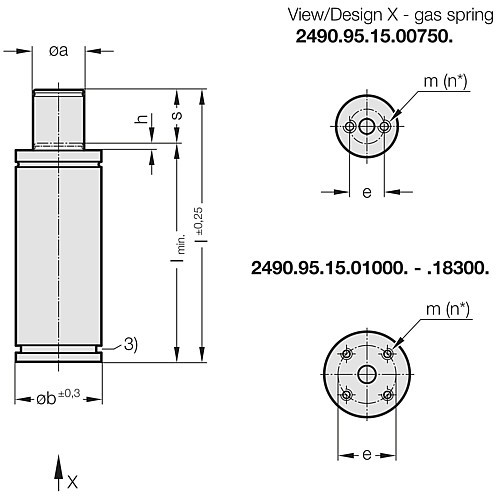

2490.95.15.00750. Gas spring Compact, for composite panel
Piston rod diameter SD = 13 mm, Compressed length LN = 57 mm, Length L = 63 mm, Order No BC = 2490.95.15.00750.006, Max. stroke HUBMAX = 6 mm, Hub Hub = 7, Spring force start FA = 740 daN
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 7 items
| SKU | Max. stroke | Spring force start | Piston rod diameter | Compressed length | Length | |
|---|---|---|---|---|---|---|
| 2490.95.15.00750.006 | 6 mm | 740 daN | 13 mm | 57 mm | 63 mm | |
| 2490.95.15.00750.010 | 10 mm | 740 daN | 13 mm | 65 mm | 75 mm | |
| 2490.95.15.00750.016 | 16 mm | 740 daN | 13 mm | 77 mm | 93 mm | |
| 2490.95.15.00750.025 | 25 mm | 740 daN | 13 mm | 95 mm | 120 mm | |
| 2490.95.15.00750.032 | 32 mm | 740 daN | 13 mm | 108 mm | 140 mm | |
| 2490.95.15.00750.040 | 40 mm | 740 daN | 13 mm | 125 mm | 165 mm | |
| 2490.95.15.00750.050 | 50 mm | 740 daN | 13 mm | 145 mm | 195 mm |
