2497.15.07500. Gas spring MAXFORCE
Note:

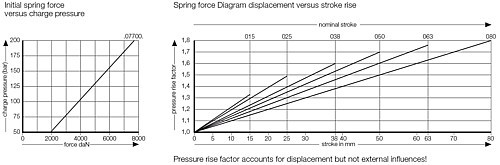

Initial spring force at 200 bar = 7700 daN
Order No for spare parts kit: 2497.15.07500
Pressure medium: Nitrogen N2
Max. filling pressure: 200 bar
Min. filling pressu
Initial spring force at 200 bar = 7700 daN
Order No for spare parts kit: 2497.15.07500
Pressure medium: Nitrogen N2
Max. filling pressure: 200 bar
Min. filling pressu
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 6 items
| SKU | Spring force start | Max. stroke | |
|---|---|---|---|
| 2497.15.07500.015 | 7700 daN | 15 mm | |
| 2497.15.07500.025 | 7700 daN | 25 mm | |
| 2497.15.07500.038 | 7700 daN | 38 mm | |
| 2497.15.07500.050 | 7700 daN | 50 mm | |
| 2497.15.07500.063 | 7700 daN | 63 mm | |
| 2497.15.07500.080 | 7700 daN | 80 mm |
