2497.15.12800. Gas spring MAXFORCE
Note:

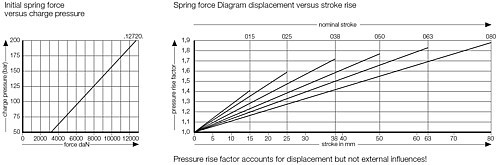

Initial spring force at 200 bar = 12720 daN
Order No for spare parts kit: 2497.15.12800
Pressure medium: Nitrogen N2
Max. filling pressure: 200 bar
Min. filling press
Initial spring force at 200 bar = 12720 daN
Order No for spare parts kit: 2497.15.12800
Pressure medium: Nitrogen N2
Max. filling pressure: 200 bar
Min. filling press
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 6 items
| SKU | Spring force start | Max. stroke | |
|---|---|---|---|
| 2497.15.12800.015 | 12720 daN | 15 mm | |
| 2497.15.12800.025 | 12720 daN | 25 mm | |
| 2497.15.12800.038 | 12720 daN | 38 mm | |
| 2497.15.12800.050 | 12720 daN | 50 mm | |
| 2497.15.12800.063 | 12720 daN | 63 mm | |
| 2497.15.12800.080 | 12720 daN | 80 mm |
