2480.12.01500. Gas spring Standard
New generation available – see product alternatives
Note:

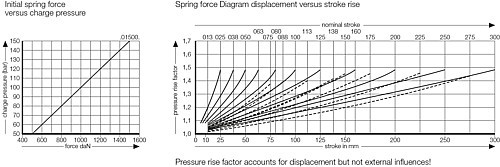

Initial spring force at 150 bar = 1500 daN
Order No for spare parts kit: 2480.12.01500
Order No for spare parts kit: to Renault standard EM24.54.700 2480.12.01500.R
Gas spring withou
Initial spring force at 150 bar = 1500 daN
Order No for spare parts kit: 2480.12.01500
Order No for spare parts kit: to Renault standard EM24.54.700 2480.12.01500.R
Gas spring withou
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 80 items
| SKU | Design | Spring force start | Max. stroke | Cylinder pipe diameter | Piston rod diameter | Length | |
|---|---|---|---|---|---|---|---|
| 2480.12.01500.013 | with valve | 1500 daN | 12.7 mm | 75.2 mm | 36 mm | 135 mm | |
| 2480.12.01500.013.P | without valve | 1500 daN | 12.7 mm | 75.2 mm | 36 mm | 135 mm | |
| 2480.12.01500.025 | with valve | 1500 daN | 25 mm | 75.2 mm | 36 mm | 160 mm | |
| 2480.12.01500.025.P | without valve | 1500 daN | 25 mm | 75.2 mm | 36 mm | 160 mm | |
| 2480.12.01500.025.R | mit Ventil -Renault Norm | 1500 daN | 25 mm | 75.2 mm | 36 mm | 160 mm | |
| 2480.12.01500.025.R.P | ohne Ventil - Renault Norm | 1500 daN | 25 mm | 75.2 mm | 36 mm | 160 mm | |
| 2480.12.01500.038 | with valve | 1500 daN | 38.1 mm | 75.2 mm | 36 mm | 186.2 mm | |
| 2480.12.01500.038.P | without valve | 1500 daN | 38.1 mm | 75.2 mm | 36 mm | 186.2 mm | |
| 2480.12.01500.038.R | mit Ventil -Renault Norm | 1500 daN | 38.1 mm | 75.2 mm | 36 mm | 186.2 mm | |
| 2480.12.01500.038.R.P | ohne Ventil - Renault Norm | 1500 daN | 38.1 mm | 75.2 mm | 36 mm | 186.2 mm | |
| 2480.12.01500.050 | with valve | 1500 daN | 50 mm | 75.2 mm | 36 mm | 210 mm | |
| 2480.12.01500.050.P | without valve | 1500 daN | 50 mm | 75.2 mm | 36 mm | 210 mm | |
| 2480.12.01500.050.R | mit Ventil -Renault Norm | 1500 daN | 50 mm | 75.2 mm | 36 mm | 210 mm | |
| 2480.12.01500.050.R.P | ohne Ventil - Renault Norm | 1500 daN | 50 mm | 75.2 mm | 36 mm | 210 mm | |
| 2480.12.01500.063 | with valve | 1500 daN | 63.5 mm | 75.2 mm | 36 mm | 237 mm | |
| 2480.12.01500.063.P | without valve | 1500 daN | 63.5 mm | 75.2 mm | 36 mm | 237 mm | |
| 2480.12.01500.063.R | mit Ventil -Renault Norm | 1500 daN | 63.5 mm | 75.2 mm | 36 mm | 237 mm | |
| 2480.12.01500.063.R.P | ohne Ventil - Renault Norm | 1500 daN | 63.5 mm | 75.2 mm | 36 mm | 237 mm | |
| 2480.12.01500.075 | with valve | 1500 daN | 75 mm | 75.2 mm | 36 mm | 260 mm | |
| 2480.12.01500.075.P | without valve | 1500 daN | 75 mm | 75.2 mm | 36 mm | 260 mm | |
| 2480.12.01500.080 | with valve | 1500 daN | 80 mm | 75.2 mm | 36 mm | 270 mm | |
| 2480.12.01500.080.P | without valve | 1500 daN | 80 mm | 75.2 mm | 36 mm | 270 mm | |
| 2480.12.01500.080.R | mit Ventil -Renault Norm | 1500 daN | 80 mm | 75.2 mm | 36 mm | 270 mm | |
| 2480.12.01500.080.R.P | ohne Ventil - Renault Norm | 1500 daN | 80 mm | 75.2 mm | 36 mm | 270 mm | |
| 2480.12.01500.100 | with valve | 1500 daN | 100 mm | 75.2 mm | 36 mm | 310 mm | |
| 2480.12.01500.100.P | without valve | 1500 daN | 100 mm | 75.2 mm | 36 mm | 310 mm | |
| 2480.12.01500.100.R | mit Ventil -Renault Norm | 1500 daN | 100 mm | 75.2 mm | 36 mm | 310 mm | |
| 2480.12.01500.100.R.P | ohne Ventil - Renault Norm | 1500 daN | 100 mm | 75.2 mm | 36 mm | 310 mm | |
| 2480.12.01500.113 | with valve | 1500 daN | 112.5 mm | 75.2 mm | 36 mm | 335 mm | |
| 2480.12.01500.113.P | without valve | 1500 daN | 112.5 mm | 75.2 mm | 36 mm | 335 mm | |
| 2480.12.01500.125 | with valve | 1500 daN | 125 mm | 75.2 mm | 36 mm | 360 mm | |
| 2480.12.01500.125.P | without valve | 1500 daN | 125 mm | 75.2 mm | 36 mm | 360 mm | |
| 2480.12.01500.125.R | mit Ventil -Renault Norm | 1500 daN | 125 mm | 75.2 mm | 36 mm | 360 mm | |
| 2480.12.01500.125.R.P | ohne Ventil - Renault Norm | 1500 daN | 125 mm | 75.2 mm | 36 mm | 360 mm | |
| 2480.12.01500.138 | with valve | 1500 daN | 137.5 mm | 75.2 mm | 36 mm | 385 mm | |
| 2480.12.01500.138.P | without valve | 1500 daN | 137.5 mm | 75.2 mm | 36 mm | 385 mm | |
| 2480.12.01500.150 | with valve | 1500 daN | 150 mm | 75.2 mm | 36 mm | 410 mm | |
| 2480.12.01500.150.P | without valve | 1500 daN | 150 mm | 75.2 mm | 36 mm | 410 mm | |
| 2480.12.01500.160 | with valve | 1500 daN | 160 mm | 75.2 mm | 36 mm | 430 mm | |
| 2480.12.01500.160.P | without valve | 1500 daN | 160 mm | 75.2 mm | 36 mm | 430 mm | |
| 2480.12.01500.160.R | mit Ventil -Renault Norm | 1500 daN | 160 mm | 75.2 mm | 36 mm | 430 mm | |
| 2480.12.01500.160.R.P | ohne Ventil - Renault Norm | 1500 daN | 160 mm | 75.2 mm | 36 mm | 430 mm | |
| 2480.12.01500.175 | with valve | 1500 daN | 175 mm | 75.2 mm | 36 mm | 460 mm | |
| 2480.12.01500.175.P | without valve | 1500 daN | 175 mm | 75.2 mm | 36 mm | 460 mm | |
| 2480.12.01500.200 | with valve | 1500 daN | 200 mm | 75.2 mm | 36 mm | 510 mm | |
| 2480.12.01500.200.P | without valve | 1500 daN | 200 mm | 75.2 mm | 36 mm | 510 mm | |
| 2480.12.01500.200.R | mit Ventil -Renault Norm | 1500 daN | 200 mm | 75.2 mm | 36 mm | 510 mm | |
| 2480.12.01500.200.R.P | ohne Ventil - Renault Norm | 1500 daN | 200 mm | 75.2 mm | 36 mm | 510 mm | |
| 2480.12.01500.225 | with valve | 1500 daN | 225 mm | 75.2 mm | 36 mm | 560 mm | |
| 2480.12.01500.225.P | without valve | 1500 daN | 225 mm | 75.2 mm | 36 mm | 560 mm | |
| 2480.12.01500.250 | with valve | 1500 daN | 250 mm | 75.2 mm | 36 mm | 610 mm | |
| 2480.12.01500.250.P | without valve | 1500 daN | 250 mm | 75.2 mm | 36 mm | 610 mm | |
| 2480.12.01500.250.R | mit Ventil -Renault Norm | 1500 daN | 250 mm | 75.2 mm | 36 mm | 610 mm | |
| 2480.12.01500.250.R.P | ohne Ventil - Renault Norm | 1500 daN | 250 mm | 75.2 mm | 36 mm | 610 mm | |
| 2480.12.01500.275 | with valve | 1500 daN | 275 mm | 75.2 mm | 36 mm | 660 mm | |
| 2480.12.01500.275.P | without valve | 1500 daN | 275 mm | 75.2 mm | 36 mm | 660 mm | |
| 2480.12.01500.275.R | mit Ventil -Renault Norm | 1500 daN | 275 mm | 75.2 mm | 36 mm | 660 mm | |
| 2480.12.01500.275.R.P | ohne Ventil - Renault Norm | 1500 daN | 275 mm | 75.2 mm | 36 mm | 660 mm | |
| 2480.12.01500.300 | with valve | 1500 daN | 300 mm | 75.2 mm | 36 mm | 710 mm | |
| 2480.12.01500.300.P | without valve | 1500 daN | 300 mm | 75.2 mm | 36 mm | 710 mm | |
| 2480.12.01500.300.R | mit Ventil -Renault Norm | 1500 daN | 300 mm | 75.2 mm | 36 mm | 710 mm | |
| 2480.12.01500.300.R.P | ohne Ventil - Renault Norm | 1500 daN | 300 mm | 75.2 mm | 36 mm | 710 mm | |
| 2480.12.01500.088.1 | with valve | 1500 daN | 87.5 mm | 75.2 mm | 36 mm | 285 mm | |
| 2480.12.01500.088.1.P | without valve | 1500 daN | 87.5 mm | 75.2 mm | 36 mm | 285 mm | |
| 2480.12.01500.013.R | mit Ventil -Renault Norm | 1500 daN | 12.7 mm | 75.2 mm | 36 mm | 135 mm | |
| 2480.12.01500.013.R.P | ohne Ventil - Renault Norm | 1500 daN | 12.7 mm | 75.2 mm | 36 mm | 135 mm | |
| 2480.12.01500.075.R | mit Ventil -Renault Norm | 1500 daN | 75 mm | 75.2 mm | 36 mm | 260 mm | |
| 2480.12.01500.075.R.P | ohne Ventil - Renault Norm | 1500 daN | 75 mm | 75.2 mm | 36 mm | 260 mm | |
| 2480.12.01500.088.1.R | mit Ventil -Renault Norm | 1500 daN | 87.5 mm | 75.2 mm | 36 mm | 285 mm | |
| 2480.12.01500.088.1.R.P | ohne Ventil - Renault Norm | 1500 daN | 87.5 mm | 75.2 mm | 36 mm | 285 mm | |
| 2480.12.01500.113.R | mit Ventil -Renault Norm | 1500 daN | 112.5 mm | 75.2 mm | 36 mm | 335 mm | |
| 2480.12.01500.113.R.P | ohne Ventil - Renault Norm | 1500 daN | 112.5 mm | 75.2 mm | 36 mm | 335 mm | |
| 2480.12.01500.138.R | mit Ventil -Renault Norm | 1500 daN | 137.5 mm | 75.2 mm | 36 mm | 385 mm | |
| 2480.12.01500.138.R.P | ohne Ventil - Renault Norm | 1500 daN | 137.5 mm | 75.2 mm | 36 mm | 385 mm | |
| 2480.12.01500.150.R | mit Ventil -Renault Norm | 1500 daN | 150 mm | 75.2 mm | 36 mm | 410 mm | |
| 2480.12.01500.150.R.P | ohne Ventil - Renault Norm | 1500 daN | 150 mm | 75.2 mm | 36 mm | 410 mm | |
| 2480.12.01500.175.R | mit Ventil -Renault Norm | 1500 daN | 175 mm | 75.2 mm | 36 mm | 460 mm | |
| 2480.12.01500.175.R.P | ohne Ventil - Renault Norm | 1500 daN | 175 mm | 75.2 mm | 36 mm | 460 mm | |
| 2480.12.01500.225.R | mit Ventil -Renault Norm | 1500 daN | 225 mm | 75.2 mm | 36 mm | 560 mm | |
| 2480.12.01500.225.R.P | ohne Ventil - Renault Norm | 1500 daN | 225 mm | 75.2 mm | 36 mm | 560 mm |
