2480.15.01500. Gas spring Standard
Note:

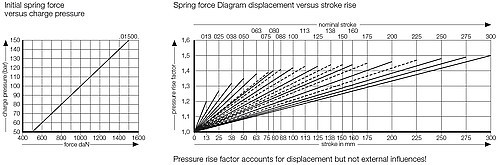

Initial spring force at 150 bar = 1530 daN
Order No for spare parts kit: 2480.15.01500
(Stroke length 13 not repairable)
Gas spring without valve
Order No (example): 2480.15.015
Initial spring force at 150 bar = 1530 daN
Order No for spare parts kit: 2480.15.01500
(Stroke length 13 not repairable)
Gas spring without valve
Order No (example): 2480.15.015
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 40 items
| SKU | Design | Spring force start | Max. stroke | |
|---|---|---|---|---|
| 2480.15.01500.013 | with valve | 1530 daN | 13 mm | |
| 2480.15.01500.013.P | without valve | 1530 daN | 13 mm | |
| 2480.15.01500.025 | with valve | 1530 daN | 25 mm | |
| 2480.15.01500.025.P | without valve | 1530 daN | 25 mm | |
| 2480.15.01500.038 | with valve | 1530 daN | 38 mm | |
| 2480.15.01500.038.P | without valve | 1530 daN | 38 mm | |
| 2480.15.01500.050 | with valve | 1530 daN | 50 mm | |
| 2480.15.01500.050.P | without valve | 1530 daN | 50 mm | |
| 2480.15.01500.063 | with valve | 1530 daN | 63.5 mm | |
| 2480.15.01500.063.P | without valve | 1530 daN | 63.5 mm | |
| 2480.15.01500.075 | with valve | 1530 daN | 75 mm | |
| 2480.15.01500.075.P | without valve | 1530 daN | 75 mm | |
| 2480.15.01500.080 | with valve | 1530 daN | 80 mm | |
| 2480.15.01500.080.P | without valve | 1530 daN | 80 mm | |
| 2480.15.01500.088 | with valve | 1530 daN | 87.5 mm | |
| 2480.15.01500.088.P | without valve | 1530 daN | 87.5 mm | |
| 2480.15.01500.100 | with valve | 1530 daN | 100 mm | |
| 2480.15.01500.100.P | without valve | 1530 daN | 100 mm | |
| 2480.15.01500.113 | with valve | 1530 daN | 112.5 mm | |
| 2480.15.01500.113.P | without valve | 1530 daN | 112.5 mm | |
| 2480.15.01500.125 | with valve | 1530 daN | 125 mm | |
| 2480.15.01500.125.P | without valve | 1530 daN | 125 mm | |
| 2480.15.01500.138 | with valve | 1530 daN | 137.5 mm | |
| 2480.15.01500.138.P | without valve | 1530 daN | 137.5 mm | |
| 2480.15.01500.150 | with valve | 1530 daN | 150 mm | |
| 2480.15.01500.150.P | without valve | 1530 daN | 150 mm | |
| 2480.15.01500.160 | with valve | 1530 daN | 160 mm | |
| 2480.15.01500.160.P | without valve | 1530 daN | 160 mm | |
| 2480.15.01500.175 | with valve | 1530 daN | 175 mm | |
| 2480.15.01500.175.P | without valve | 1530 daN | 175 mm | |
| 2480.15.01500.200 | with valve | 1530 daN | 200 mm | |
| 2480.15.01500.200.P | without valve | 1530 daN | 200 mm | |
| 2480.15.01500.225 | with valve | 1530 daN | 225 mm | |
| 2480.15.01500.225.P | without valve | 1530 daN | 225 mm | |
| 2480.15.01500.250 | with valve | 1530 daN | 250 mm | |
| 2480.15.01500.250.P | without valve | 1530 daN | 250 mm | |
| 2480.15.01500.275 | with valve | 1530 daN | 275 mm | |
| 2480.15.01500.275.P | without valve | 1530 daN | 275 mm | |
| 2480.15.01500.300 | with valve | 1530 daN | 300 mm | |
| 2480.15.01500.300.P | without valve | 1530 daN | 300 mm |
