2480.15.00750. Gas spring Standard
Note:

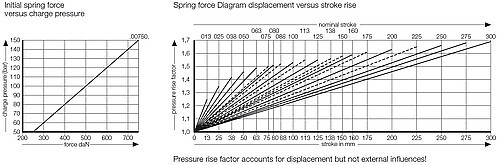

Initial spring force at 150 bar = 740 daN
Order No for spare parts kit: 2480.15.00750
(Stroke length 13 not repairable)
Gas spring without valve
Order No (example): 2480.15.0075
Initial spring force at 150 bar = 740 daN
Order No for spare parts kit: 2480.15.00750
(Stroke length 13 not repairable)
Gas spring without valve
Order No (example): 2480.15.0075
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 40 items
| SKU | Design | Spring force start | Max. stroke | |
|---|---|---|---|---|
| 2480.15.00750.013 | with valve | 740 daN | 12.7 mm | |
| 2480.15.00750.013.P | without valve | 740 daN | 12.7 mm | |
| 2480.15.00750.025 | with valve | 740 daN | 25 mm | |
| 2480.15.00750.025.P | without valve | 740 daN | 25 mm | |
| 2480.15.00750.038 | with valve | 740 daN | 38 mm | |
| 2480.15.00750.038.P | without valve | 740 daN | 38 mm | |
| 2480.15.00750.050 | with valve | 740 daN | 50 mm | |
| 2480.15.00750.050.P | without valve | 740 daN | 50 mm | |
| 2480.15.00750.063 | with valve | 740 daN | 63.5 mm | |
| 2480.15.00750.063.P | without valve | 740 daN | 63.5 mm | |
| 2480.15.00750.075 | with valve | 740 daN | 75 mm | |
| 2480.15.00750.075.P | without valve | 740 daN | 75 mm | |
| 2480.15.00750.080 | with valve | 740 daN | 80 mm | |
| 2480.15.00750.080.P | without valve | 740 daN | 80 mm | |
| 2480.15.00750.088 | with valve | 740 daN | 87.5 mm | |
| 2480.15.00750.088.P | without valve | 740 daN | 87.5 mm | |
| 2480.15.00750.100 | with valve | 740 daN | 100 mm | |
| 2480.15.00750.100.P | without valve | 740 daN | 100 mm | |
| 2480.15.00750.113 | with valve | 740 daN | 112.5 mm | |
| 2480.15.00750.113.P | without valve | 740 daN | 112.5 mm | |
| 2480.15.00750.125 | with valve | 740 daN | 125 mm | |
| 2480.15.00750.125.P | without valve | 740 daN | 125 mm | |
| 2480.15.00750.138 | with valve | 740 daN | 137.5 mm | |
| 2480.15.00750.138.P | without valve | 740 daN | 137.5 mm | |
| 2480.15.00750.150 | with valve | 740 daN | 150 mm | |
| 2480.15.00750.150.P | without valve | 740 daN | 150 mm | |
| 2480.15.00750.160 | with valve | 740 daN | 160 mm | |
| 2480.15.00750.160.P | without valve | 740 daN | 160 mm | |
| 2480.15.00750.175 | with valve | 740 daN | 175 mm | |
| 2480.15.00750.175.P | without valve | 740 daN | 175 mm | |
| 2480.15.00750.200 | with valve | 740 daN | 200 mm | |
| 2480.15.00750.200.P | without valve | 740 daN | 200 mm | |
| 2480.15.00750.225 | with valve | 740 daN | 225 mm | |
| 2480.15.00750.225.P | without valve | 740 daN | 225 mm | |
| 2480.15.00750.250 | with valve | 740 daN | 250 mm | |
| 2480.15.00750.250.P | without valve | 740 daN | 250 mm | |
| 2480.15.00750.275 | with valve | 740 daN | 275 mm | |
| 2480.15.00750.275.P | without valve | 740 daN | 275 mm | |
| 2480.15.00750.300 | with valve | 740 daN | 300 mm | |
| 2480.15.00750.300.P | without valve | 740 daN | 300 mm |
