2485.15.00500. Gas spring with low build height
Note:

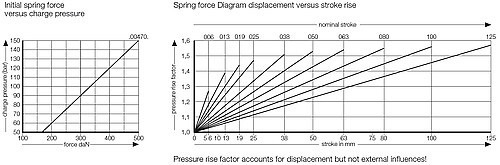

Initial spring force at 150 bar = 470 daN
Order No for spare parts kit: 2485.15.00500
(Stroke length 6 and 13 not repairable)
Gas spring without valve
Order No (example): 2485.1
Initial spring force at 150 bar = 470 daN
Order No for spare parts kit: 2485.15.00500
(Stroke length 6 and 13 not repairable)
Gas spring without valve
Order No (example): 2485.1
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 20 items
| SKU | Design | Spring force start | Max. stroke | |
|---|---|---|---|---|
| 2485.15.00500.006 | with valve | 470 daN | 6 mm | |
| 2485.15.00500.013 | with valve | 470 daN | 13 mm | |
| 2485.15.00500.019 | with valve | 470 daN | 19 mm | |
| 2485.15.00500.025 | with valve | 470 daN | 25 mm | |
| 2485.15.00500.038 | with valve | 470 daN | 38 mm | |
| 2485.15.00500.050 | with valve | 470 daN | 50 mm | |
| 2485.15.00500.063 | with valve | 470 daN | 63 mm | |
| 2485.15.00500.080 | with valve | 470 daN | 80 mm | |
| 2485.15.00500.100 | with valve | 470 daN | 100 mm | |
| 2485.15.00500.125 | with valve | 470 daN | 125 mm | |
| 2485.15.00500.006.P | without valve | 470 daN | 6 mm | |
| 2485.15.00500.013.P | without valve | 470 daN | 13 mm | |
| 2485.15.00500.019.P | without valve | 470 daN | 19 mm | |
| 2485.15.00500.025.P | without valve | 470 daN | 25 mm | |
| 2485.15.00500.038.P | without valve | 470 daN | 38 mm | |
| 2485.15.00500.050.P | without valve | 470 daN | 50 mm | |
| 2485.15.00500.063.P | without valve | 470 daN | 63 mm | |
| 2485.15.00500.080.P | without valve | 470 daN | 80 mm | |
| 2485.15.00500.100.P | without valve | 470 daN | 100 mm | |
| 2485.15.00500.125.P | without valve | 470 daN | 125 mm |
