2487.12.00170. Gas spring POWERLINE

2487.12.00170. Gas spring POWERLINE

New generation available – see product alternatives
Note:

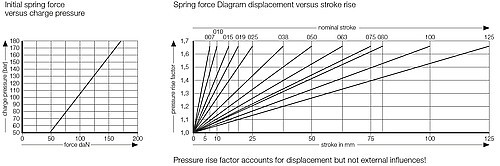

Initial spring force at 180 bar = 170 daN

Worn gas springs cannot be repaired, they have to be replaced completely.

1) Fixing at bottom thread only recommanded for stroke length up to 25 mm.

Pressure medium: Nitrogen N2
Max. filling pressure: 180 bar
Min. filling pressure: 25 bar
Working temperature: 0°C to +80°C
Temperature related force increase: ± 0.3%/°C
Max. recommended extensions per minute:
approx. 40 to 100 (at 20°C)
Max. piston rod speed: 1.6 m/s
SKU: 2487-12-00170-
Order No
Spring force start
170 daN Reset
Max. stroke
Working stroke
Length
Piston rod diameter
11 mm Reset
Cylinder pipe diameter
19 mm Reset
Log in to view price, availability, and order the product.

Products

Showing 1-10 of 12 items
SKU Spring force start Max. stroke Working stroke Length Piston rod diameter Cylinder pipe diameter
2487.12.00170.007 170 daN 7 mm 8 44 mm 11 mm 19 mm
2487.12.00170.010 170 daN 10 mm 11 50 mm 11 mm 19 mm
2487.12.00170.015 170 daN 15 mm 16 60 mm 11 mm 19 mm
2487.12.00170.019 170 daN 19 mm 20 68 mm 11 mm 19 mm
2487.12.00170.025 170 daN 25 mm 26 80 mm 11 mm 19 mm
2487.12.00170.038 170 daN 38 mm 39 106 mm 11 mm 19 mm
2487.12.00170.050 170 daN 50 mm 51 130 mm 11 mm 19 mm
2487.12.00170.063 170 daN 63 mm 64 156 mm 11 mm 19 mm
2487.12.00170.075 170 daN 75 mm 76 185 mm 11 mm 19 mm
2487.12.00170.080 170 daN 80 mm 81 195 mm 11 mm 19 mm
2487.12.00170.100 170 daN 100 mm 101 235 mm 11 mm 19 mm
2487.12.00170.125 170 daN 125 mm 126 285 mm 11 mm 19 mm
