2487.12.00320. Gas spring POWERLINE
New generation available – see product alternatives
Note:

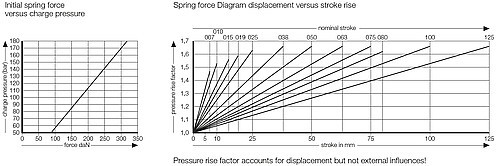

Initial spring force at 180 bar = 320 daN
Worn gas springs cannot be repaired, they have to be replaced completely.
Pressure medium: Nitrogen N2
Max. filling pressure: 180 bar
Min. filling pressure: 25 bar
Working temperature: 0°C to +80°C
Temperature related force increase: ± 0.3%/°C
Max. recommended extensions per minute:
approx. 40 to 100 (at 20°C)
Max. piston rod speed: 1.6 m/s
Initial spring force at 180 bar = 320 daN
Worn gas springs cannot be repaired, they have to be replaced completely.
Pressure medium: Nitrogen N2
Max. filling pressure: 180 bar
Min. filling pressure: 25 bar
Working temperature: 0°C to +80°C
Temperature related force increase: ± 0.3%/°C
Max. recommended extensions per minute:
approx. 40 to 100 (at 20°C)
Max. piston rod speed: 1.6 m/s
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 12 items
| SKU | Spring force start | Max. stroke | Working stroke | Length | Cylinder pipe diameter | Piston rod diameter | |
|---|---|---|---|---|---|---|---|
| 2487.12.00320.007 | 320 daN | 7 mm | 8 | 44 mm | 24.9 mm | 15 mm | |
| 2487.12.00320.010 | 320 daN | 10 mm | 11 | 50 mm | 24.9 mm | 15 mm | |
| 2487.12.00320.015 | 320 daN | 15 mm | 16 | 60 mm | 24.9 mm | 15 mm | |
| 2487.12.00320.019 | 320 daN | 19 mm | 20 | 68 mm | 24.9 mm | 15 mm | |
| 2487.12.00320.025 | 320 daN | 25 mm | 26 | 80 mm | 24.9 mm | 15 mm | |
| 2487.12.00320.038 | 320 daN | 38 mm | 39 | 106 mm | 24.9 mm | 15 mm | |
| 2487.12.00320.050 | 320 daN | 50 mm | 51 | 130 mm | 24.9 mm | 15 mm | |
| 2487.12.00320.063 | 320 daN | 63 mm | 64 | 156 mm | 24.9 mm | 15 mm | |
| 2487.12.00320.075 | 320 daN | 75 mm | 76 | 185 mm | 24.9 mm | 15 mm | |
| 2487.12.00320.080 | 320 daN | 80 mm | 81 | 195 mm | 24.9 mm | 15 mm | |
| 2487.12.00320.100 | 320 daN | 100 mm | 101 | 235 mm | 24.9 mm | 15 mm | |
| 2487.12.00320.125 | 320 daN | 125 mm | 126 | 285 mm | 24.9 mm | 15 mm |
