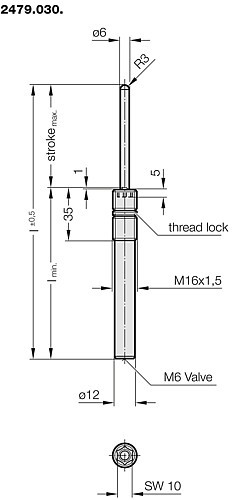

2479.030. Gas spring (Spring plunger), with hexagon socket, VDI 3004

2479.030. Gas spring (Spring plunger), with hexagon socket, VDI 3004

New generation available – see product alternatives
Description:
Spring plungers are used as ejectors, damper pins, fixing and retaining pins in many sectors of the tool-, jig- and fixture-making industries.
Assembly requires the use of special FIBRO insertion t
SKU: 2479-030-
Order No
Screw-in thread
M16x1.5 mm Reset
Length
Max. stroke
Spring force start
Log in to view price, availability, and order the product.

Products

Showing 1-10 of 50 items
SKU Screw-in thread Length Max. stroke Spring force start
2479.030.00000.010 M16x1.5 mm 65 mm 10 mm 0
2479.030.00000.020 M16x1.5 mm 85 mm 20 mm 0
2479.030.00000.030 M16x1.5 mm 105 mm 30 mm 0
2479.030.00000.040 M16x1.5 mm 125 mm 40 mm 0
2479.030.00000.050 M16x1.5 mm 145 mm 50 mm 0
2479.030.00000.060 M16x1.5 mm 165 mm 60 mm 0
2479.030.00000.070 M16x1.5 mm 185 mm 70 mm 0
2479.030.00000.080 M16x1.5 mm 205 mm 80 mm 0
2479.030.00000.100 M16x1.5 mm 245 mm 100 mm 0
2479.030.00000.125 M16x1.5 mm 295 mm 125 mm 0
2479.030.00005.010 M16x1.5 mm 65 mm 10 mm 6
2479.030.00005.020 M16x1.5 mm 85 mm 20 mm 6
2479.030.00005.030 M16x1.5 mm 105 mm 30 mm 6
2479.030.00005.040 M16x1.5 mm 125 mm 40 mm 6
2479.030.00005.050 M16x1.5 mm 145 mm 50 mm 6
2479.030.00005.060 M16x1.5 mm 165 mm 60 mm 6
2479.030.00005.070 M16x1.5 mm 185 mm 70 mm 6
2479.030.00005.080 M16x1.5 mm 205 mm 80 mm 6
2479.030.00005.100 M16x1.5 mm 245 mm 100 mm 6
2479.030.00005.125 M16x1.5 mm 295 mm 125 mm 6
2479.030.00010.010 M16x1.5 mm 65 mm 10 mm 11
2479.030.00010.020 M16x1.5 mm 85 mm 20 mm 11
2479.030.00010.030 M16x1.5 mm 105 mm 30 mm 11
2479.030.00010.040 M16x1.5 mm 125 mm 40 mm 11
2479.030.00010.050 M16x1.5 mm 145 mm 50 mm 11
2479.030.00010.060 M16x1.5 mm 165 mm 60 mm 11
2479.030.00010.070 M16x1.5 mm 185 mm 70 mm 11
2479.030.00010.080 M16x1.5 mm 205 mm 80 mm 11
2479.030.00010.100 M16x1.5 mm 245 mm 100 mm 11
2479.030.00010.125 M16x1.5 mm 295 mm 125 mm 11
2479.030.00020.010 M16x1.5 mm 65 mm 10 mm 21
2479.030.00020.020 M16x1.5 mm 85 mm 20 mm 21
2479.030.00020.030 M16x1.5 mm 105 mm 30 mm 21
2479.030.00020.040 M16x1.5 mm 125 mm 40 mm 21
2479.030.00020.050 M16x1.5 mm 145 mm 50 mm 21
2479.030.00020.060 M16x1.5 mm 165 mm 60 mm 21
2479.030.00020.070 M16x1.5 mm 185 mm 70 mm 21
2479.030.00020.080 M16x1.5 mm 205 mm 80 mm 21
2479.030.00020.100 M16x1.5 mm 245 mm 100 mm 21
2479.030.00020.125 M16x1.5 mm 295 mm 125 mm 21
2479.030.00040.010 M16x1.5 mm 65 mm 10 mm 42
2479.030.00040.020 M16x1.5 mm 85 mm 20 mm 42
2479.030.00040.030 M16x1.5 mm 105 mm 30 mm 42
2479.030.00040.040 M16x1.5 mm 125 mm 40 mm 42
2479.030.00040.050 M16x1.5 mm 145 mm 50 mm 42
2479.030.00040.060 M16x1.5 mm 165 mm 60 mm 42
2479.030.00040.070 M16x1.5 mm 185 mm 70 mm 42
2479.030.00040.080 M16x1.5 mm 205 mm 80 mm 42
2479.030.00040.100 M16x1.5 mm 245 mm 100 mm 42
2479.030.00040.125 M16x1.5 mm 295 mm 125 mm 42
