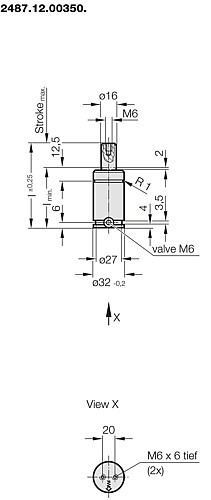

2487.12.00350. Gas spring POWERLINE

2487.12.00350. Gas spring POWERLINE

New generation available – see product alternatives
Note:
Initial spring force at 180 bar = 350 daN

Order No for spare parts kit: 2487.12.00350

Gas spring without valve
Order No (example): 2487.12.00350. .P

Pressure medium: Nitrogen N2
Max. filling pressure: 180 bar
Min. filling pressure: 25 bar
Working temperature: 0°C to +80°C
Temperature related force increase: ± 0.3%/°C
Max. recommended extensions per minute: approx. 20 to 100 (at 20°C)
Max. piston rod speed: 1.6 m/s
SKU: 2487-12-00350-
Order No
Design
Spring force start
350 daN Reset
Max. stroke
HUB
Cylinder pipe diameter
32 mm Reset
Piston rod diameter
16 mm Reset
Length
Log in to view price, availability, and order the product.

Products

Showing 1-10 of 26 items
SKU Design Spring force start Max. stroke HUB Cylinder pipe diameter Piston rod diameter Length
2487.12.00350.010 with valve 350 daN 10 mm 11 32 mm 16 mm 50 mm
2487.12.00350.010.P without valve 350 daN 10 mm 11 32 mm 16 mm 50 mm
2487.12.00350.013 with valve 350 daN 13 mm 14 32 mm 16 mm 56 mm
2487.12.00350.013.P without valve 350 daN 13 mm 14 32 mm 16 mm 56 mm
2487.12.00350.016 with valve 350 daN 16 mm 17 32 mm 16 mm 62 mm
2487.12.00350.016.P without valve 350 daN 16 mm 17 32 mm 16 mm 62 mm
2487.12.00350.019 with valve 350 daN 19 mm 20 32 mm 16 mm 68 mm
2487.12.00350.019.P without valve 350 daN 19 mm 20 32 mm 16 mm 68 mm
2487.12.00350.025 with valve 350 daN 25 mm 26 32 mm 16 mm 80 mm
2487.12.00350.025.P without valve 350 daN 25 mm 26 32 mm 16 mm 80 mm
2487.12.00350.032 with valve 350 daN 32 mm 33 32 mm 16 mm 94 mm
2487.12.00350.032.P without valve 350 daN 32 mm 33 32 mm 16 mm 94 mm
2487.12.00350.038 with valve 350 daN 38 mm 39 32 mm 16 mm 106 mm
2487.12.00350.038.P without valve 350 daN 38 mm 39 32 mm 16 mm 106 mm
2487.12.00350.050 with valve 350 daN 50 mm 51 32 mm 16 mm 130 mm
2487.12.00350.050.P without valve 350 daN 50 mm 51 32 mm 16 mm 130 mm
2487.12.00350.063 with valve 350 daN 63 mm 64 32 mm 16 mm 156 mm
2487.12.00350.063.P without valve 350 daN 63 mm 64 32 mm 16 mm 156 mm
2487.12.00350.075 with valve 350 daN 75 mm 76 32 mm 16 mm 180 mm
2487.12.00350.075.P without valve 350 daN 75 mm 76 32 mm 16 mm 180 mm
2487.12.00350.080 with valve 350 daN 80 mm 81 32 mm 16 mm 190 mm
2487.12.00350.080.P without valve 350 daN 80 mm 81 32 mm 16 mm 190 mm
2487.12.00350.100 with valve 350 daN 100 mm 101 32 mm 16 mm 230 mm
2487.12.00350.100.P without valve 350 daN 100 mm 101 32 mm 16 mm 230 mm
2487.12.00350.125 with valve 350 daN 125 mm 126 32 mm 16 mm 280 mm
2487.12.00350.125.P without valve 350 daN 125 mm 126 32 mm 16 mm 280 mm
