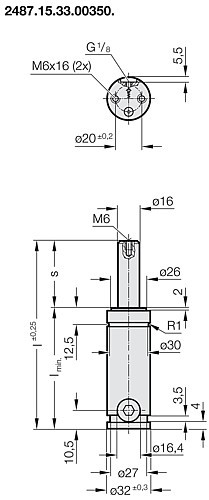

2487.15.33.00350. Gas spring POWERLINE, with reinforced spring base
Note:

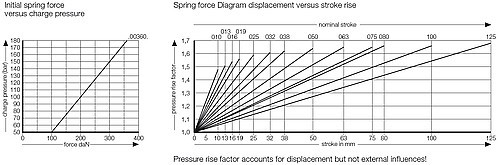

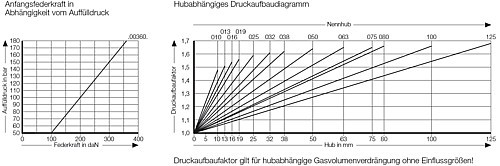

Initial spring force at 180 bar = 360 daN
Order No for spare parts kit: 2487.15.00350
(Stroke length 10 and 13 not repairable)
Pressure medium: Nitrogen N2
Max. filli
Initial spring force at 180 bar = 360 daN
Order No for spare parts kit: 2487.15.00350
(Stroke length 10 and 13 not repairable)
Pressure medium: Nitrogen N2
Max. filli
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 13 items
| SKU | Spring force start | Max. stroke | |
|---|---|---|---|
| 2487.15.33.00350.010 | 360 daN | 10 mm | |
| 2487.15.33.00350.013 | 360 daN | 13 mm | |
| 2487.15.33.00350.016 | 360 daN | 16 mm | |
| 2487.15.33.00350.019 | 360 daN | 19 mm | |
| 2487.15.33.00350.025 | 360 daN | 25 mm | |
| 2487.15.33.00350.032 | 360 daN | 32 mm | |
| 2487.15.33.00350.038 | 360 daN | 38 mm | |
| 2487.15.33.00350.050 | 360 daN | 50 mm | |
| 2487.15.33.00350.063 | 360 daN | 63 mm | |
| 2487.15.33.00350.075 | 360 daN | 75 mm | |
| 2487.15.33.00350.080 | 360 daN | 80 mm | |
| 2487.15.33.00350.100 | 360 daN | 100 mm | |
| 2487.15.33.00350.125 | 360 daN | 125 mm |
