2487.12.09500. Gas spring POWERLINE
New generation available – see product alternatives
Note:

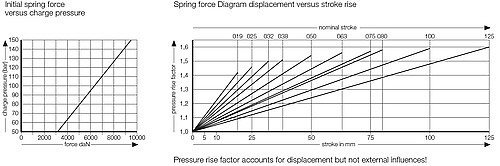

Initial spring force at 150 bar = 9500 daN
Order No for spare parts kit: 2487.12.09500
Gas spring without valve
Order No (example): 2487.12.09500. .P
Pressure medium: Nitr
Initial spring force at 150 bar = 9500 daN
Order No for spare parts kit: 2487.12.09500
Gas spring without valve
Order No (example): 2487.12.09500. .P
Pressure medium: Nitr
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 20 items
| SKU | Design | Spring force start | Max. stroke | Cylinder pipe diameter | Piston rod diameter | Length | |
|---|---|---|---|---|---|---|---|
| 2487.12.09500.019 | with valve | 9500 daN | 19 mm | 150.2 mm | 90 mm | 116 mm | |
| 2487.12.09500.019.P | without valve | 9500 daN | 19 mm | 150.2 mm | 90 mm | 116 mm | |
| 2487.12.09500.025 | with valve | 9500 daN | 25 mm | 150.2 mm | 90 mm | 128 mm | |
| 2487.12.09500.025.P | without valve | 9500 daN | 25 mm | 150.2 mm | 90 mm | 128 mm | |
| 2487.12.09500.032 | with valve | 9500 daN | 32 mm | 150.2 mm | 90 mm | 142 mm | |
| 2487.12.09500.032.P | without valve | 9500 daN | 32 mm | 150.2 mm | 90 mm | 142 mm | |
| 2487.12.09500.038 | with valve | 9500 daN | 38 mm | 150.2 mm | 90 mm | 154 mm | |
| 2487.12.09500.038.P | without valve | 9500 daN | 38 mm | 150.2 mm | 90 mm | 154 mm | |
| 2487.12.09500.050 | with valve | 9500 daN | 50 mm | 150.2 mm | 90 mm | 178 mm | |
| 2487.12.09500.050.P | without valve | 9500 daN | 50 mm | 150.2 mm | 90 mm | 178 mm | |
| 2487.12.09500.063 | with valve | 9500 daN | 63 mm | 150.2 mm | 90 mm | 204 mm | |
| 2487.12.09500.063.P | without valve | 9500 daN | 63 mm | 150.2 mm | 90 mm | 204 mm | |
| 2487.12.09500.075 | with valve | 9500 daN | 75 mm | 150.2 mm | 90 mm | 228 mm | |
| 2487.12.09500.075.P | without valve | 9500 daN | 75 mm | 150.2 mm | 90 mm | 228 mm | |
| 2487.12.09500.080 | with valve | 9500 daN | 80 mm | 150.2 mm | 90 mm | 238 mm | |
| 2487.12.09500.080.P | without valve | 9500 daN | 80 mm | 150.2 mm | 90 mm | 238 mm | |
| 2487.12.09500.100.P | without valve | 9500 daN | 100 mm | 150.2 mm | 90 mm | 278 mm | |
| 2487.12.09500.125.P | without valve | 9500 daN | 125 mm | 150.2 mm | 90 mm | 328 mm | |
| 2487.12.09500.100 | with valve | 9500 daN | 100 mm | 150.2 mm | 90 mm | 278 mm | |
| 2487.12.09500.125 | with valve | 9500 daN | 125 mm | 150.2 mm | 90 mm | 328 mm |
