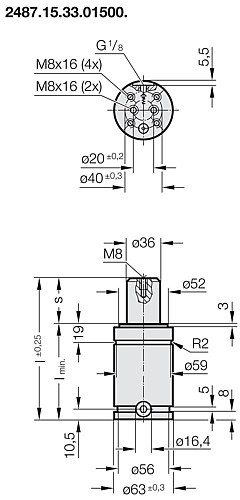

2487.15.33.01500. Gas spring POWERLINE, with reinforced spring base
Note:

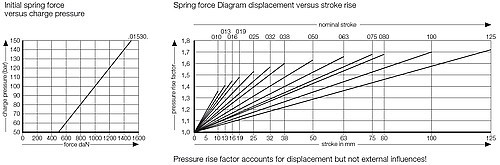

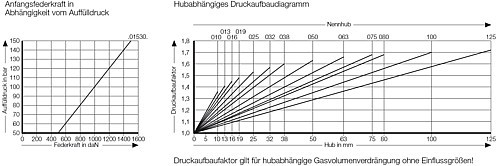

Initial spring force at 150 bar = 1530 daN
Order No for spare parts kit: 2487.15.01500
(Stroke length 10, 13 and 16 not repairable)
Pressure medium: Nitrogen N2
Max.
Initial spring force at 150 bar = 1530 daN
Order No for spare parts kit: 2487.15.01500
(Stroke length 10, 13 and 16 not repairable)
Pressure medium: Nitrogen N2
Max.
Log in to view price, availability, and order the product.
Products
Showing 1-10 of 13 items
| SKU | Spring force start | Max. stroke | |
|---|---|---|---|
| 2487.15.33.01500.013 | 1530 daN | 13 mm | |
| 2487.15.33.01500.016 | 1530 daN | 16 mm | |
| 2487.15.33.01500.019 | 1530 daN | 19 mm | |
| 2487.15.33.01500.025 | 1530 daN | 25 mm | |
| 2487.15.33.01500.032 | 1530 daN | 32 mm | |
| 2487.15.33.01500.038 | 1530 daN | 38 mm | |
| 2487.15.33.01500.050 | 1530 daN | 50 mm | |
| 2487.15.33.01500.063 | 1530 daN | 63 mm | |
| 2487.15.33.01500.075 | 1530 daN | 75 mm | |
| 2487.15.33.01500.080 | 1530 daN | 80 mm | |
| 2487.15.33.01500.100 | 1530 daN | 100 mm | |
| 2487.15.33.01500.125 | 1530 daN | 125 mm | |
| 2487.15.33.01500.010 | 1530 daN | 10 mm |
