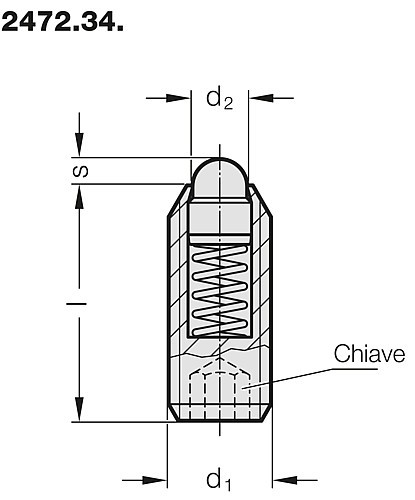

2472.04._34. Spina elastica di pressione, con perno, con esagono interno, forza della molla accresciuta
Materiale:
Bussola: Nirosta 1.4305
Perno: Nirosta 1.4305
Molla: Nirosta
Nota:
Da impiegare come arresti molleggiati, come spintori e come distanziatori.
Impiegabili a temperature: fino al mass. 250°
Manica con 2 punti longitudinali.
Bussola: Nirosta 1.4305
Perno: Nirosta 1.4305
Molla: Nirosta
Nota:
Da impiegare come arresti molleggiati, come spintori e come distanziatori.
Impiegabili a temperature: fino al mass. 250°
Manica con 2 punti longitudinali.
Effettua il login per vedere prezzo e disponibilità e ordinare il prodotto.
Prodotti
Mostrando 1-10 di 14 articoli
| Numero articolo | Sleeve/pressure pin material | Filettatura | Lunghezza | Corsa max | |
|---|---|---|---|---|---|
| 2472.04.006 | Free cutting steel / Free cutting steel | M6 | 15 mm | 2 mm | |
| 2472.04.008 | Free cutting steel / Free cutting steel | M8 | 18 mm | 2 mm | |
| 2472.04.010 | Free cutting steel / Free cutting steel | M10 | 23 mm | 2.5 mm | |
| 2472.04.012 | Free cutting steel / Free cutting steel | M12 | 26 mm | 3.5 mm | |
| 2472.04.016 | Free cutting steel / Free cutting steel | M16 | 33 mm | 4.5 mm | |
| 2472.04.020 | Free cutting steel / Free cutting steel | M20 | 43 mm | 6.5 mm | |
| 2472.04.024 | Free cutting steel / Free cutting steel | M24 | 48 mm | 8 mm | |
| 2472.34.006 | Stainless steel / Stainless steel | M6 | 15 mm | 2 mm | |
| 2472.34.008 | Stainless steel / Stainless steel | M8 | 18 mm | 2 mm | |
| 2472.34.010 | Stainless steel / Stainless steel | M10 | 23 mm | 2.5 mm | |
| 2472.34.012 | Stainless steel / Stainless steel | M12 | 26 mm | 3.5 mm | |
| 2472.34.016 | Stainless steel / Stainless steel | M16 | 33 mm | 4.5 mm | |
| 2472.34.020 | Stainless steel / Stainless steel | M20 | 43 mm | 6.5 mm | |
| 2472.34.024 | Stainless steel / Stainless steel | M24 | 48 mm | 8 mm |
