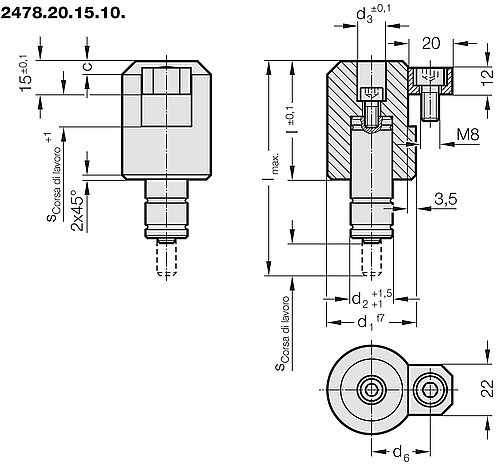

2478.20.15.10. Sollevatore, rotondo con foro di ricerca secondo la norma BMW

2478.20.15.10. Sollevatore, rotondo con foro di ricerca secondo la norma BMW

Esecuzione:
Il gruppo si compone di:
● Sollevatore
● Staffa di serraggio,
  Inclusa vite a testa cilindrica M8 x 16 secondo ISO 4762
● Molla a gas
  – ø 19 mm (1) = 2482.77.00090.
  Forza della molla 90 daN
  oppure
  – ø 25 mm (2) = 2480.24.00200.
  Forza della molla 200 daN
● Vite a testa cilindrica M6⊗12 secondo ISO 4762

Nota:
*SCorsa di lavoro utilizzabile = corsa elastica max. consentita a cui va sottratto il 10% di riserva di corsa della lunghezza nominale della corsa, a partire da una corsa di 50 mm solo max. 5 mm.

Molla a gas con una forza inferiore a molla disponibile su richiesta.

Numero articolo: 2478-20-15-10-
N. d’ordine
Diametro esterno
Lunghezza
Corsa di lavoro
Corsa di lavoro utilizzata
ML2
12 mm Ripristina
Effettua il login per vedere prezzo e disponibilità e ordinare il prodotto.

Prodotti

Mostrando 1-10 di 135 articoli
Numero articolo Diametro esterno Lunghezza Corsa di lavoro Corsa di lavoro utilizzata ML2
2478.20.15.10.111.120 28 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.112.120 28 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.121.120 30 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.122.120 30 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.141.120 40 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.142.120 40 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.143.120 40 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.152.120 50 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.153.120 50 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.232.120 35 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.233.120 35 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.242.120 40 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.243.120 40 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.252.120 50 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.253.120 50 mm 160 mm 120 mm 121 12 mm
2478.20.15.10.111.009 28 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.111.014 28 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.111.023 28 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.111.034 28 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.111.045 28 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.111.059 28 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.111.075 28 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.111.095 28 mm 135 mm 95 mm 96 12 mm
2478.20.15.10.112.009 28 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.112.014 28 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.112.023 28 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.112.034 28 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.112.045 28 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.112.059 28 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.112.075 28 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.112.095 28 mm 135 mm 95 mm 96 12 mm
2478.20.15.10.121.009 30 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.121.014 30 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.121.023 30 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.121.034 30 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.121.045 30 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.121.059 30 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.121.075 30 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.121.095 30 mm 135 mm 95 mm 96 12 mm
2478.20.15.10.122.009 30 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.122.014 30 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.122.023 30 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.122.034 30 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.122.045 30 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.122.059 30 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.122.075 30 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.122.095 30 mm 135 mm 95 mm 96 12 mm
2478.20.15.10.141.009 40 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.141.014 40 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.141.023 40 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.141.034 40 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.141.045 40 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.141.059 40 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.141.075 40 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.141.095 40 mm 135 mm 95 mm 96 12 mm
2478.20.15.10.142.009 40 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.142.014 40 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.142.023 40 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.142.034 40 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.142.045 40 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.142.059 40 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.142.075 40 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.142.095 40 mm 135 mm 95 mm 96 12 mm
2478.20.15.10.143.009 40 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.143.014 40 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.143.023 40 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.143.034 40 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.143.045 40 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.143.059 40 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.143.075 40 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.143.095 40 mm 135 mm 95 mm 96 12 mm
2478.20.15.10.152.009 50 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.152.014 50 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.152.023 50 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.152.034 50 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.152.045 50 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.152.059 50 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.152.075 50 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.152.095 50 mm 135 mm 95 mm 96 12 mm
2478.20.15.10.153.009 50 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.153.014 50 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.153.023 50 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.153.034 50 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.153.045 50 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.153.059 50 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.153.075 50 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.153.095 50 mm 135 mm 95 mm 96 12 mm
2478.20.15.10.232.009 35 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.232.014 35 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.232.023 35 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.232.034 35 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.232.045 35 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.232.059 35 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.232.075 35 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.232.095 35 mm 135 mm 95 mm 96 12 mm
2478.20.15.10.233.009 35 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.233.014 35 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.233.023 35 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.233.034 35 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.233.045 35 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.233.059 35 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.233.075 35 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.233.095 35 mm 135 mm 95 mm 96 12 mm
2478.20.15.10.242.009 40 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.242.014 40 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.242.023 40 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.242.034 40 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.242.045 40 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.242.059 40 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.242.075 40 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.242.095 40 mm 135 mm 95 mm 96 12 mm
2478.20.15.10.243.009 40 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.243.014 40 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.243.023 40 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.243.034 40 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.243.045 40 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.243.059 40 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.243.075 40 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.243.095 40 mm 135 mm 95 mm 96 12 mm
2478.20.15.10.252.009 50 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.252.014 50 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.252.023 50 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.252.034 50 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.252.045 50 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.252.059 50 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.252.075 50 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.252.095 50 mm 135 mm 95 mm 96 12 mm
2478.20.15.10.253.009 50 mm 49 mm 9 mm 10 12 mm
2478.20.15.10.253.014 50 mm 53.5 mm 13.5 mm 14 12 mm
2478.20.15.10.253.023 50 mm 62.5 mm 22.5 mm 23 12 mm
2478.20.15.10.253.034 50 mm 74 mm 34 mm 35 12 mm
2478.20.15.10.253.045 50 mm 85 mm 45 mm 46 12 mm
2478.20.15.10.253.059 50 mm 98.5 mm 58.5 mm 59 12 mm
2478.20.15.10.253.075 50 mm 115 mm 75 mm 76 12 mm
2478.20.15.10.253.095 50 mm 135 mm 95 mm 96 12 mm
