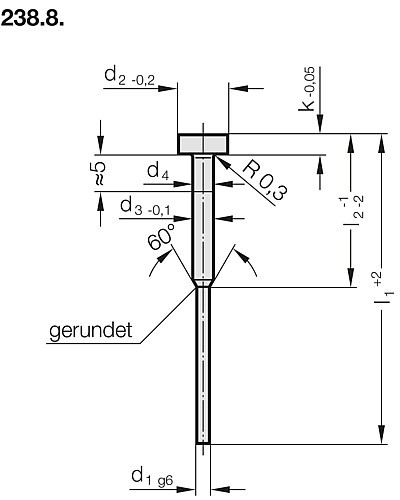

238.8. Auswerferstift, nitriert, rund abgesetzt, DIN 1530-2 Form C
Werkstoff:
NWA
Bestell-Nummer 238.8.
Härte:
Schaft* ≥ 950 HV 0,3
Kopf 45 ± 5 HRC
Kernzugfestigkeit > 1400 N/mm²
↗ Werkstoffbeschreib
NWA
Bestell-Nummer 238.8.
Härte:
Schaft* ≥ 950 HV 0,3
Kopf 45 ± 5 HRC
Kernzugfestigkeit > 1400 N/mm²
↗ Werkstoffbeschreib
Bitte melden Sie sich an, um Preis und Verfügbarkeit zu sehen und das Produkt zu bestellen.
Produkte
Zeigt 1-10 von 75 Artikel
| Artikelnummer | Durchmesser | Länge | |
|---|---|---|---|
| 238.8.0080.063 | 0.8 mm | 63 | |
| 238.8.0080.080 | 0.8 mm | 80 | |
| 238.8.0080.100 | 0.8 mm | 100 | |
| 238.8.0080.125 | 0.8 mm | 125 | |
| 238.8.0080.160 | 0.8 mm | 160 | |
| 238.8.0090.063 | 0.9 mm | 63 | |
| 238.8.0090.080 | 0.9 mm | 80 | |
| 238.8.0090.100 | 0.9 mm | 100 | |
| 238.8.0090.125 | 0.9 mm | 125 | |
| 238.8.0090.160 | 0.9 mm | 160 | |
| 238.8.0100.063 | 1 mm | 63 | |
| 238.8.0100.080 | 1 mm | 80 | |
| 238.8.0100.100 | 1 mm | 100 | |
| 238.8.0100.125 | 1 mm | 125 | |
| 238.8.0100.160 | 1 mm | 160 | |
| 238.8.0110.063 | 1.1 mm | 63 | |
| 238.8.0110.080 | 1.1 mm | 80 | |
| 238.8.0110.100 | 1.1 mm | 100 | |
| 238.8.0110.125 | 1.1 mm | 125 | |
| 238.8.0110.160 | 1.1 mm | 160 | |
| 238.8.0120.063 | 1.2 mm | 63 | |
| 238.8.0120.080 | 1.2 mm | 80 | |
| 238.8.0120.100 | 1.2 mm | 100 | |
| 238.8.0120.125 | 1.2 mm | 125 | |
| 238.8.0120.160 | 1.2 mm | 160 | |
| 238.8.0130.063 | 1.3 mm | 63 | |
| 238.8.0130.080 | 1.3 mm | 80 | |
| 238.8.0130.100 | 1.3 mm | 100 | |
| 238.8.0130.125 | 1.3 mm | 125 | |
| 238.8.0130.160 | 1.3 mm | 160 | |
| 238.8.0140.063 | 1.4 mm | 63 | |
| 238.8.0140.080 | 1.4 mm | 80 | |
| 238.8.0140.100 | 1.4 mm | 100 | |
| 238.8.0140.125 | 1.4 mm | 125 | |
| 238.8.0140.160 | 1.4 mm | 160 | |
| 238.8.0150.063 | 1.5 mm | 63 | |
| 238.8.0150.080 | 1.5 mm | 80 | |
| 238.8.0150.100 | 1.5 mm | 100 | |
| 238.8.0150.125 | 1.5 mm | 125 | |
| 238.8.0150.160 | 1.5 mm | 160 | |
| 238.8.0150.200 | 1.5 mm | 200 | |
| 238.8.0160.080 | 1.6 mm | 80 | |
| 238.8.0160.100 | 1.6 mm | 100 | |
| 238.8.0160.125 | 1.6 mm | 125 | |
| 238.8.0160.160 | 1.6 mm | 160 | |
| 238.8.0160.200 | 1.6 mm | 200 | |
| 238.8.0170.080 | 1.7 mm | 80 | |
| 238.8.0170.100 | 1.7 mm | 100 | |
| 238.8.0170.125 | 1.7 mm | 125 | |
| 238.8.0170.160 | 1.7 mm | 160 | |
| 238.8.0170.200 | 1.7 mm | 200 | |
| 238.8.0180.080 | 1.8 mm | 80 | |
| 238.8.0180.100 | 1.8 mm | 100 | |
| 238.8.0180.125 | 1.8 mm | 125 | |
| 238.8.0180.160 | 1.8 mm | 160 | |
| 238.8.0180.200 | 1.8 mm | 200 | |
| 238.8.0190.080 | 1.9 mm | 80 | |
| 238.8.0190.100 | 1.9 mm | 100 | |
| 238.8.0190.125 | 1.9 mm | 125 | |
| 238.8.0190.160 | 1.9 mm | 160 | |
| 238.8.0190.200 | 1.9 mm | 200 | |
| 238.8.0200.080 | 2 mm | 80 | |
| 238.8.0200.100 | 2 mm | 100 | |
| 238.8.0200.125 | 2 mm | 125 | |
| 238.8.0200.160 | 2 mm | 160 | |
| 238.8.0200.200 | 2 mm | 200 | |
| 238.8.0220.080 | 2.2 mm | 80 | |
| 238.8.0220.100 | 2.2 mm | 100 | |
| 238.8.0220.125 | 2.2 mm | 125 | |
| 238.8.0220.160 | 2.2 mm | 160 | |
| 238.8.0220.200 | 2.2 mm | 200 | |
| 238.8.0250.100 | 2.5 mm | 100 | |
| 238.8.0250.125 | 2.5 mm | 125 | |
| 238.8.0250.160 | 2.5 mm | 160 | |
| 238.8.0250.200 | 2.5 mm | 200 |
